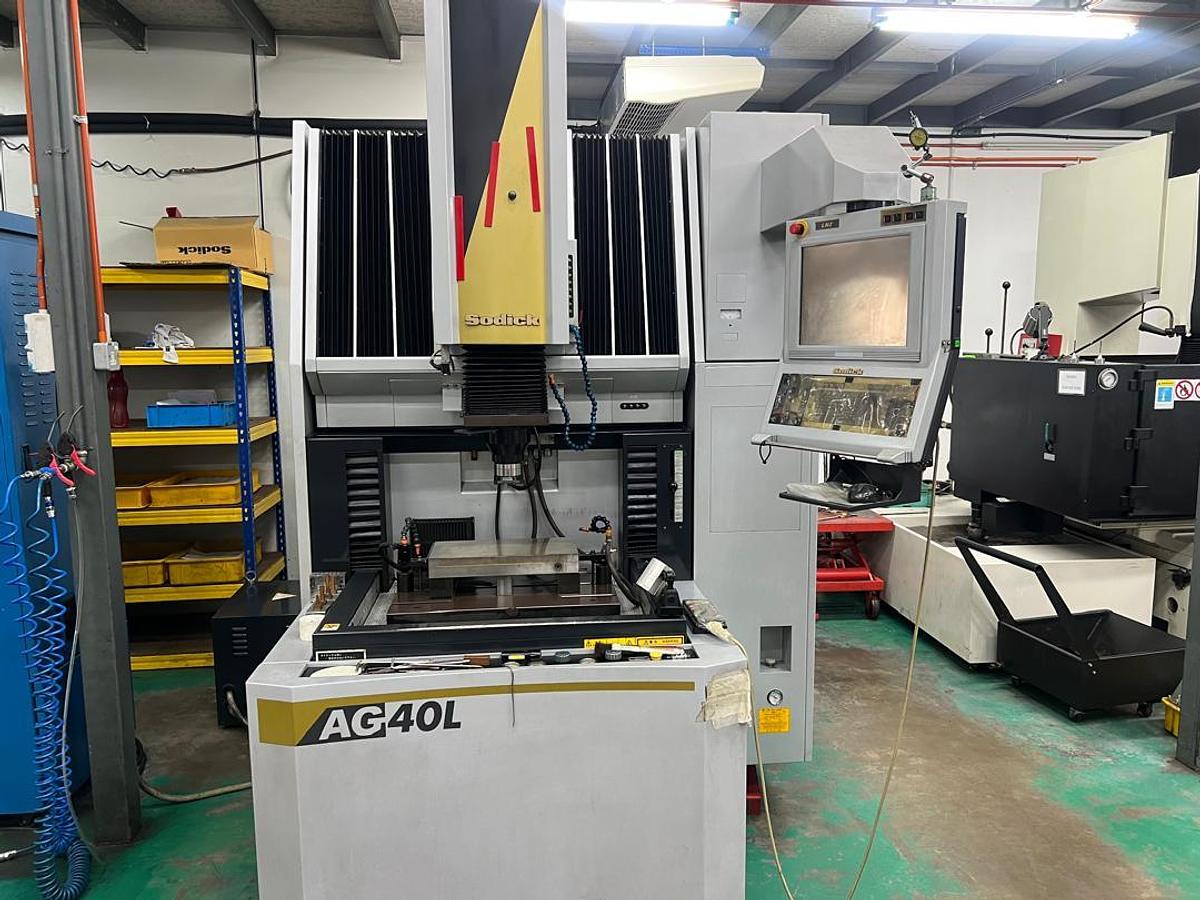

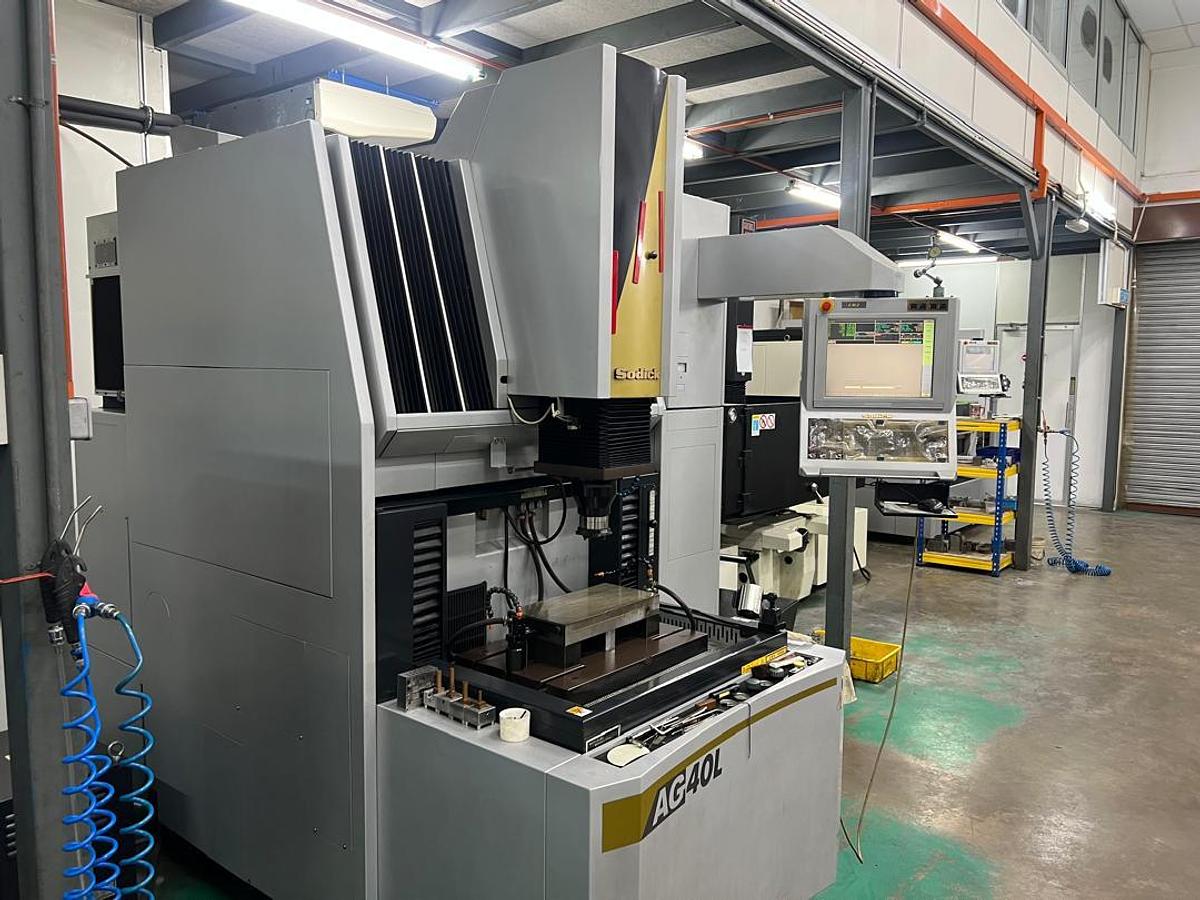

Sodick AG40L Die Sinking EDM Year 2013
Sodick AG40L Die Sinking EDM Year 2013
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Sodick |
| Model | AG40L |
| Year | 2013 |
| Condition | Used |
| Stock Number | 0812 |
| X-axis travel | 400 mm |
| Y-axis travel | 300 mm |
| Z-axis travel | 270 mm |

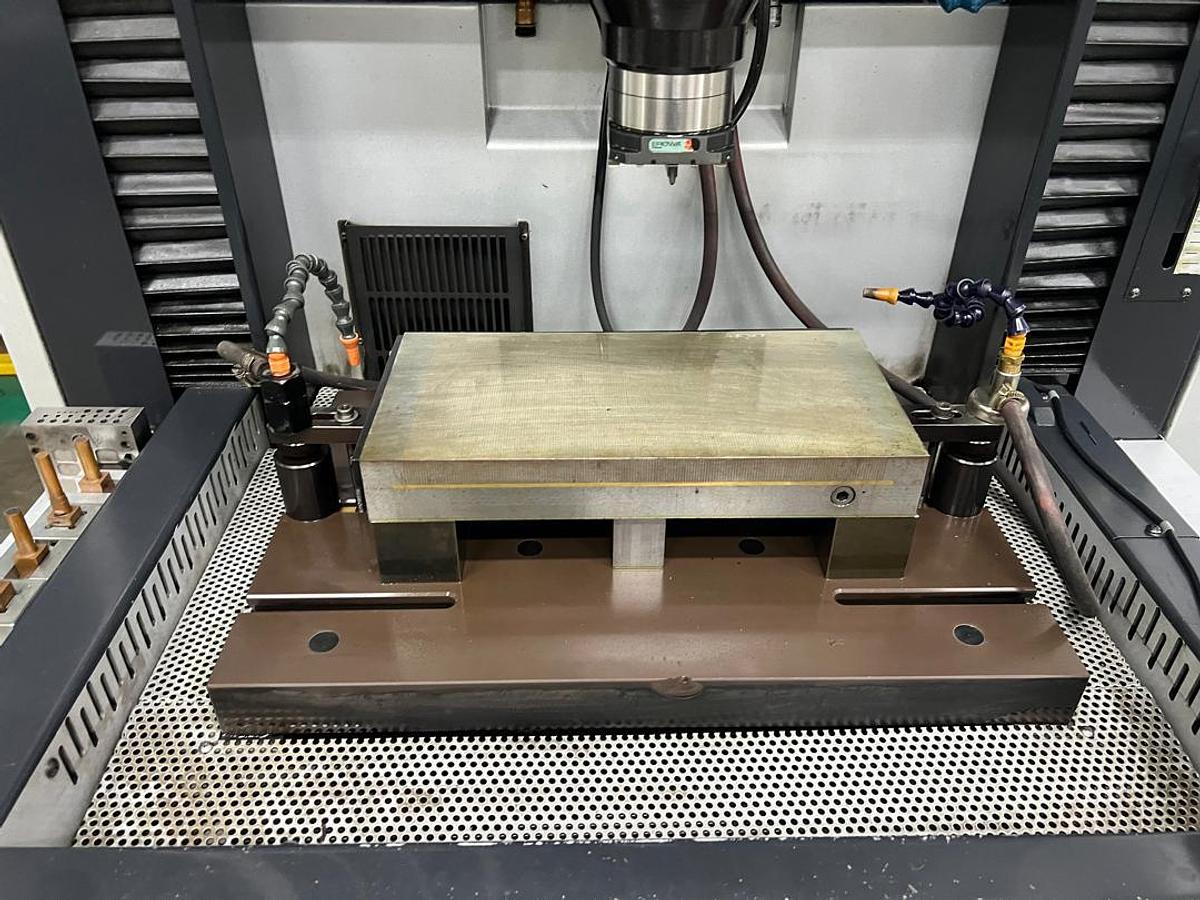

| Table size | 600 × 400 mm |
| Work tank dimensions | 750 × 620 × 350 mm |
| Work tank fluid level | 100 – 300 mm |
| Max. workpiece weight | 550 kg |
| Max. electrode weight | 50 kg |
| Distance from floor to table top | 830mm |
| Machine dimensions (W × D × H) | 1662 × 2490 × 2330 mm |
| Machine weight | 4100 kg |
| Air pressure | 0.65 MPa |
| Step resolution | 0.0001 mm |
| CNC control | LN2 |
