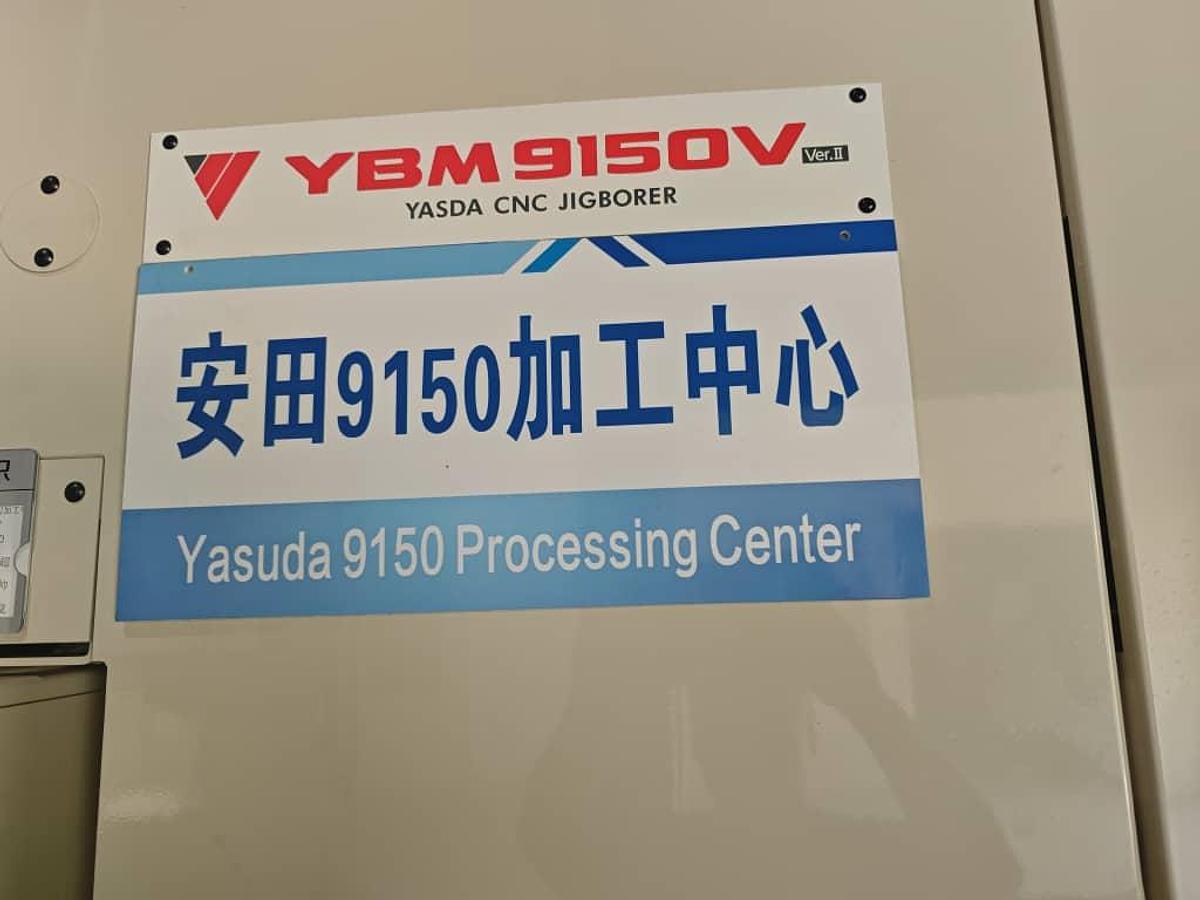

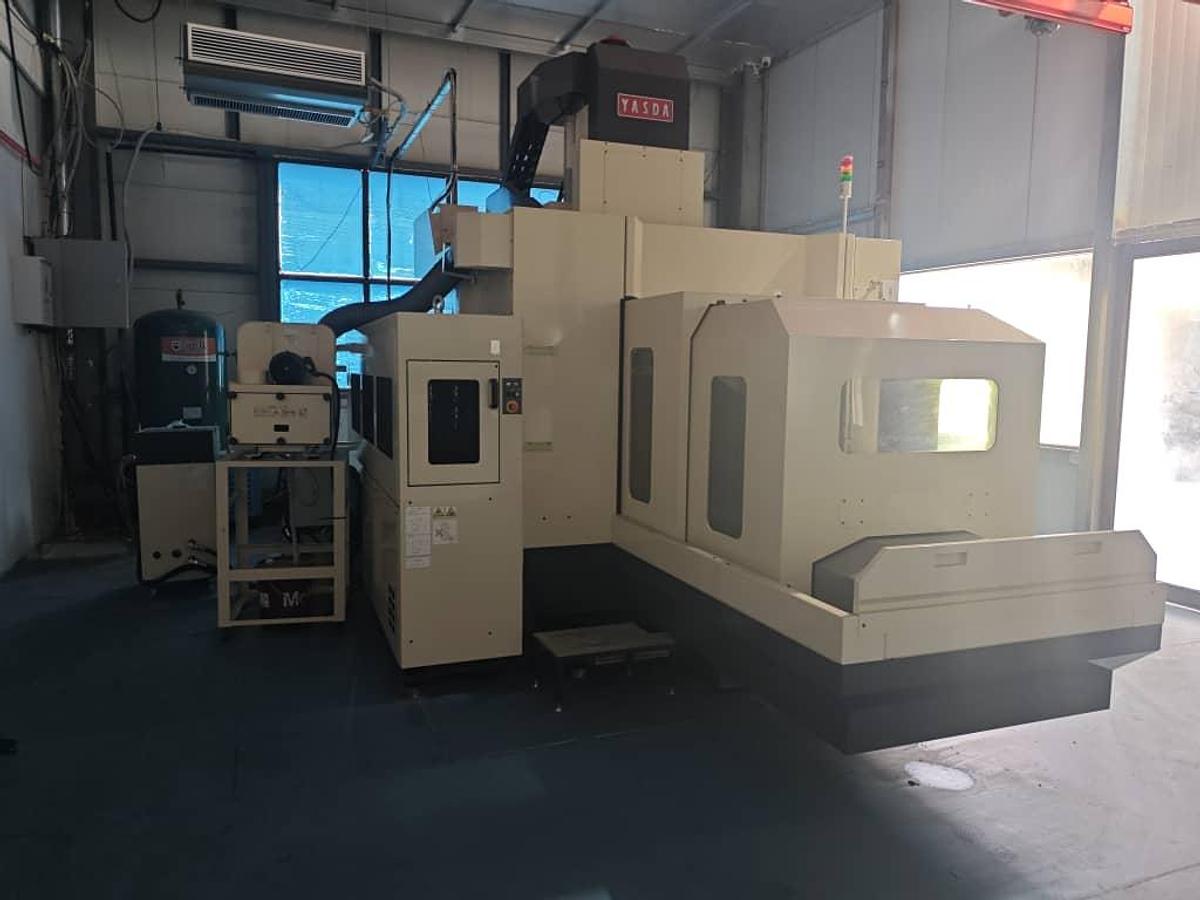

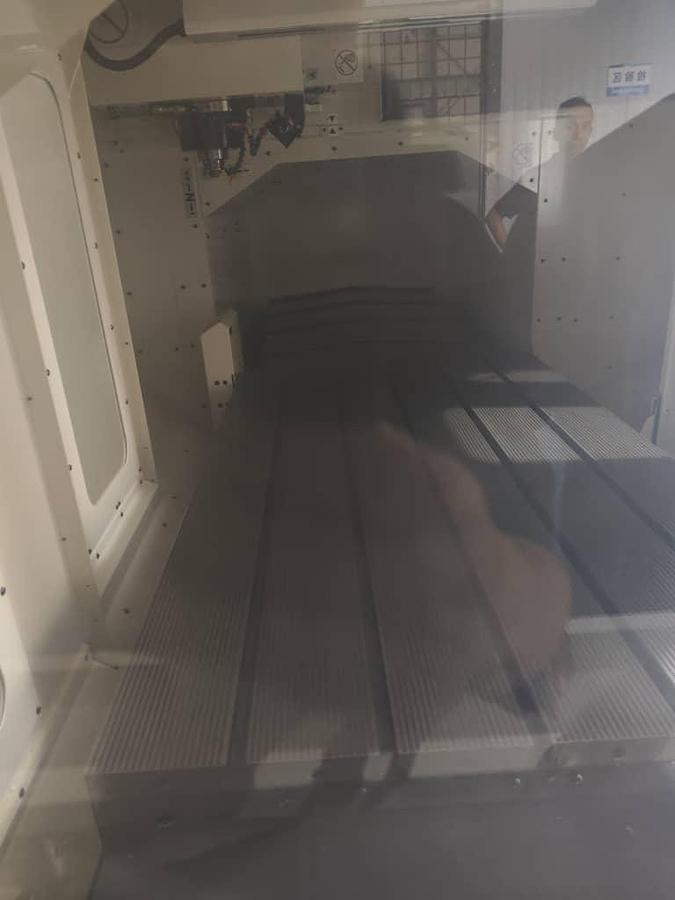

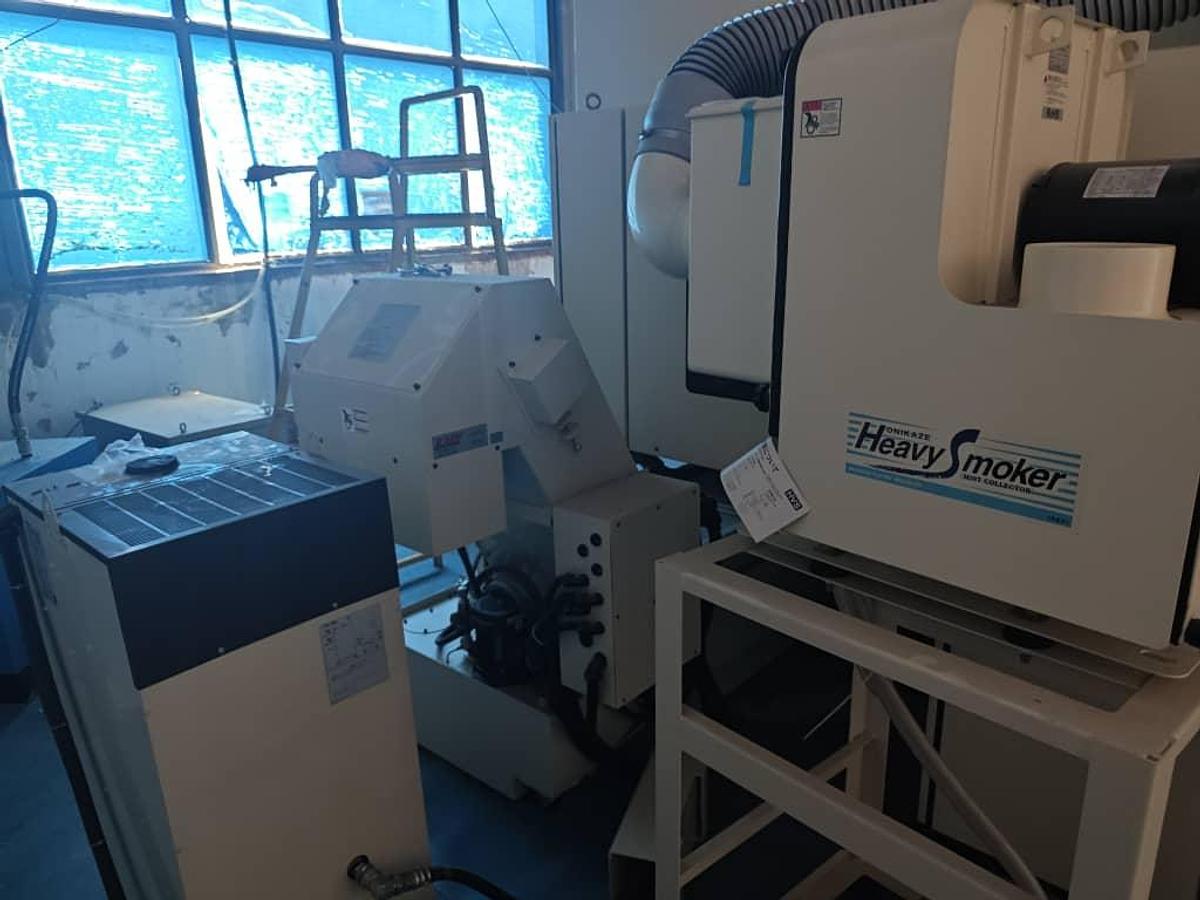

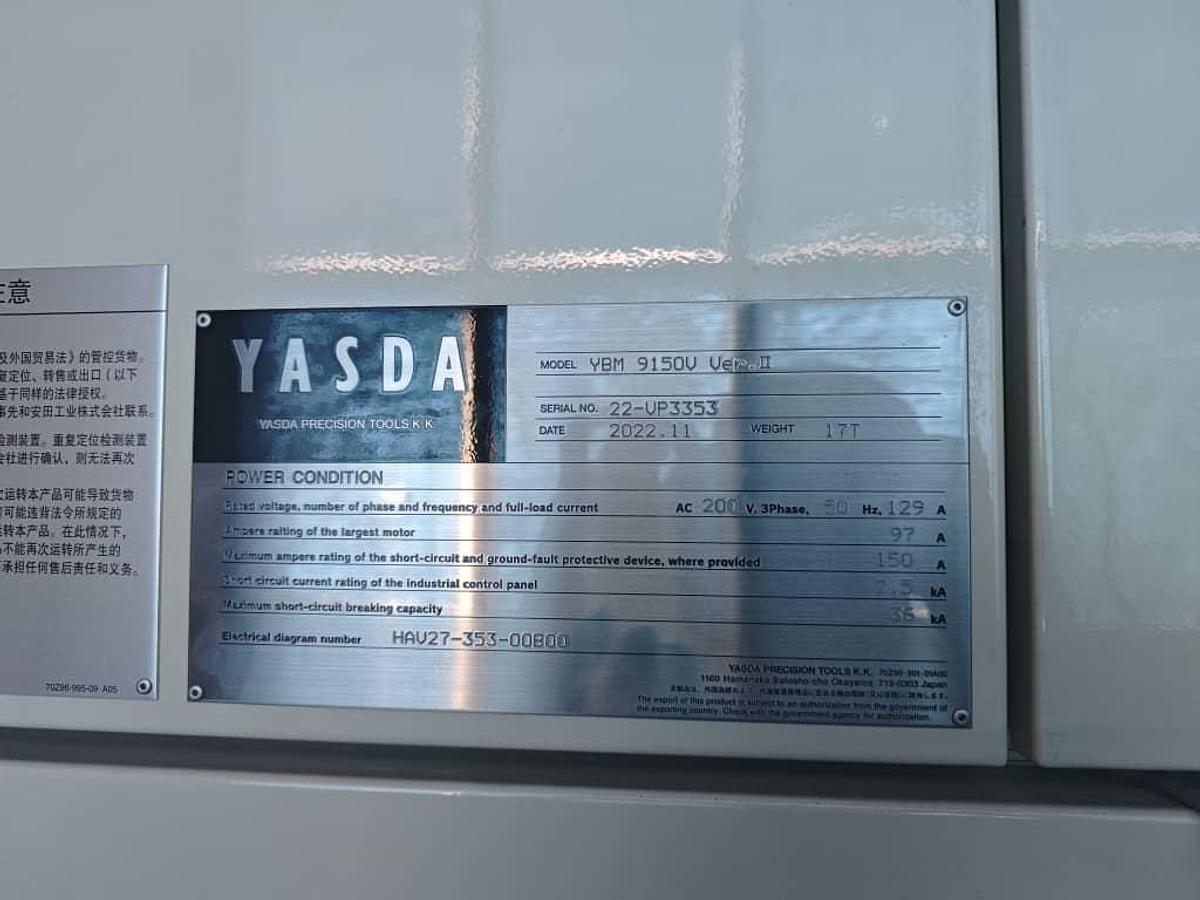

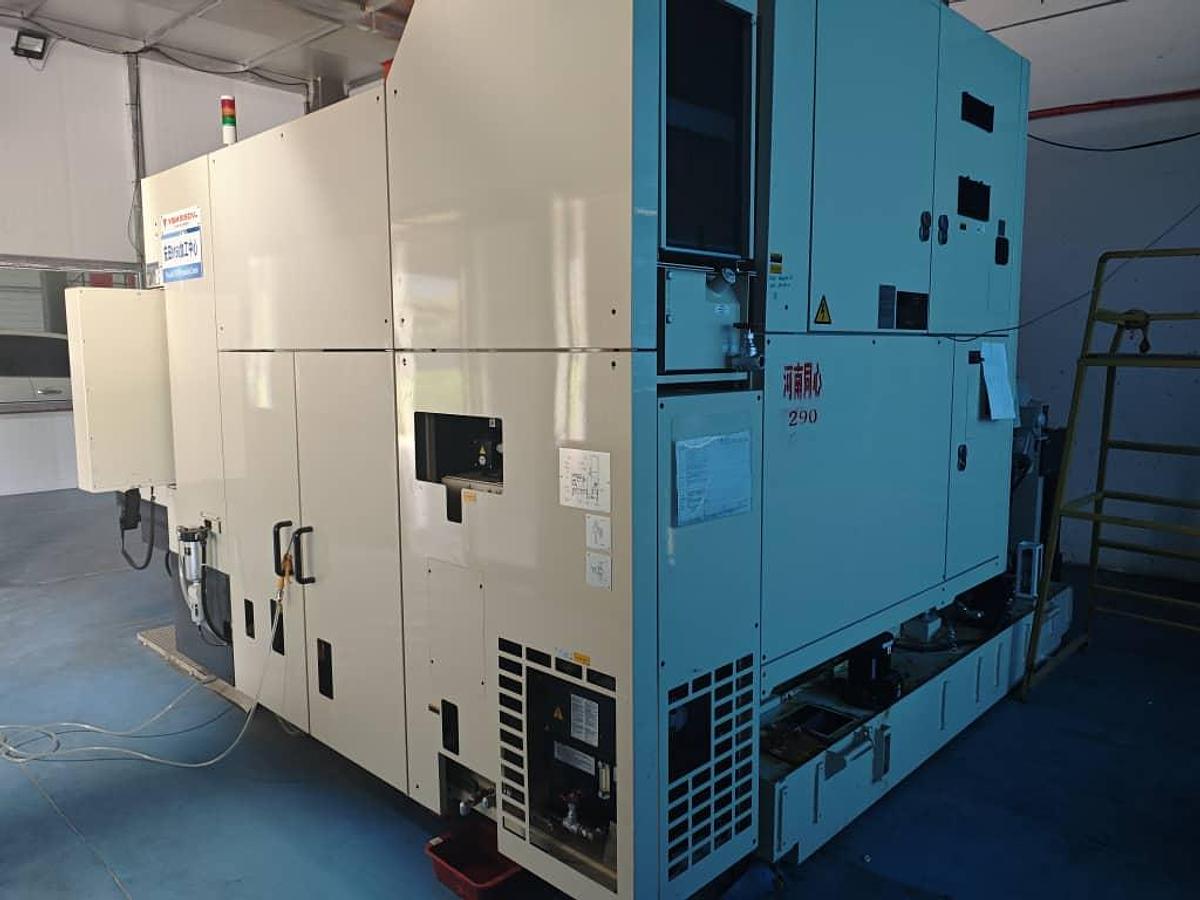

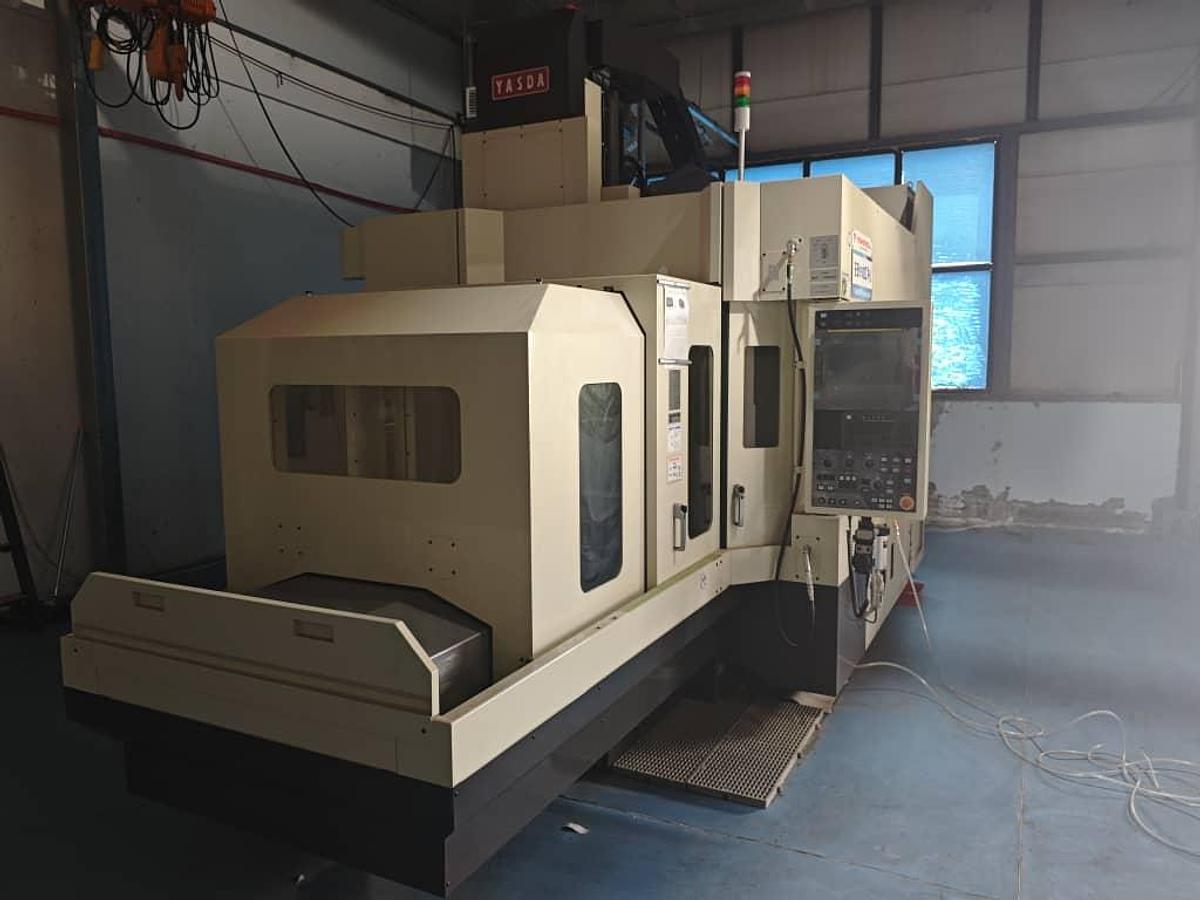

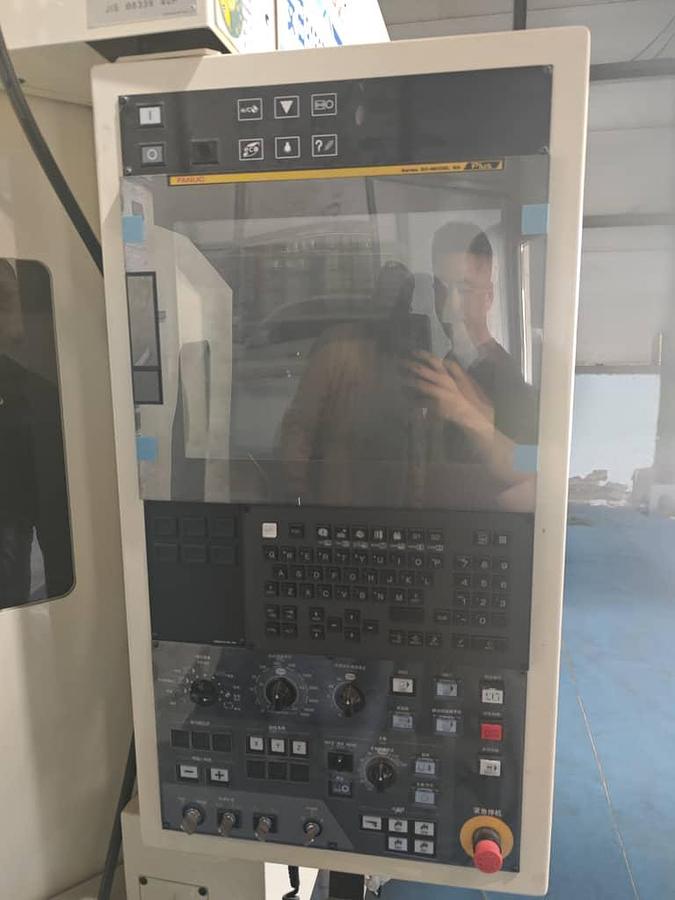

Yasda YBM 9150V CNC Jig Borer Year 2022
Yasda YBM 9150V CNC Jig Borer Year 2022
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Yasda |
| Model | YBM 9150V |
| Year | 2022 |
| Condition | Used |
| Stock Number | 0805 |
| X-axis travel | 1,500 mm |
| Y-axis travel | 900 mm |
| Z-axis travel | 700 mm |
| Distance from table surface to spindle nose face | 150 – 600 mm |
| Spindle speed range | 100 – 24,000 min⁻¹ |
| Spindle taper hole | BIG plus spindle |
| Spindle end surface | 7/24 taper No.40 |
| Table working surface | 1500mm x 900mm |
| Table loading capacity | 3,000 kg |
| Rapid traverse rate | 20,000 mm/min |
| Cutting feed rate | 1 – 5,000 mm/min |
| Least input increment | 0.0001 mm |
| Tool shank type | JIS B6339-40P |
| Table surface configuration | 18 mm / 150 mm / 5 T slots |
| Tool storage capacity | Approx. 16,000 kg |
| Mass of machine | Approx. 16,000 kg |
| Electric power capacity | 41 kVA |
| CNC Control | FANUC |
