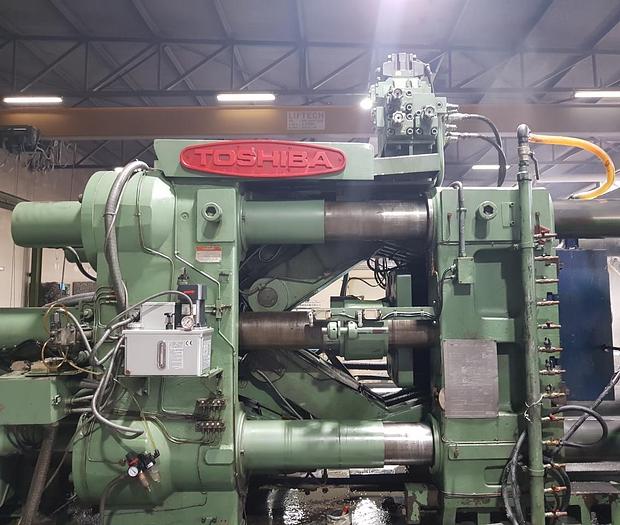

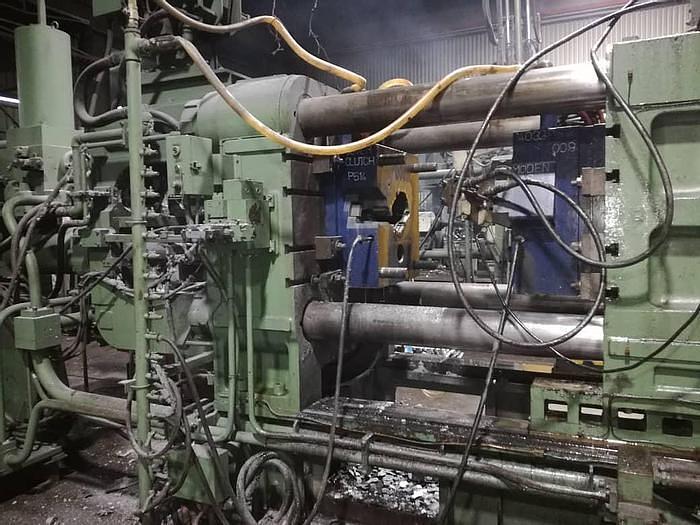

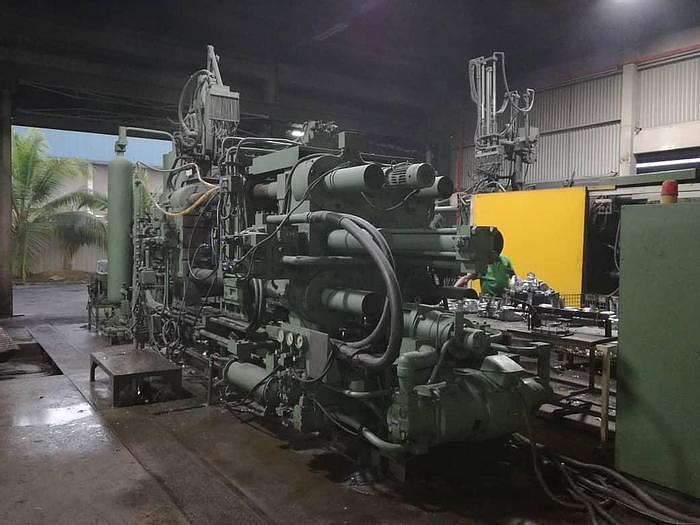

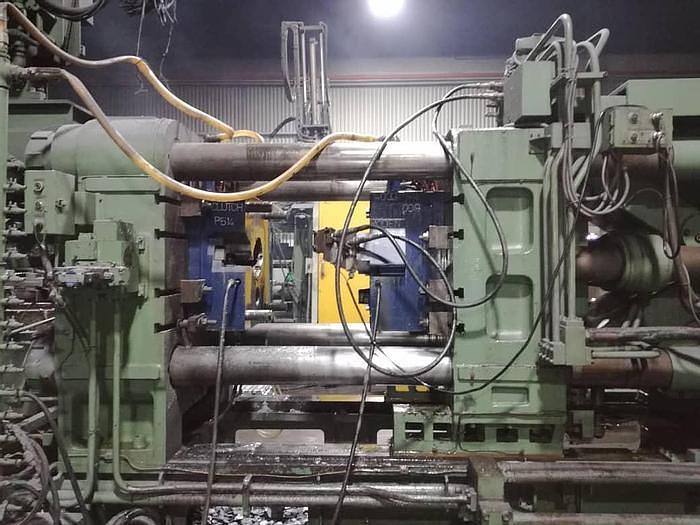

Year 1991 Toshiba 650T Model DC650C Die Casting Machine
Year 1991 Toshiba 650T Model DC650C Die Casting Machine
Contact us for price
Location:Malaysia
or
Call +60194711264
Description

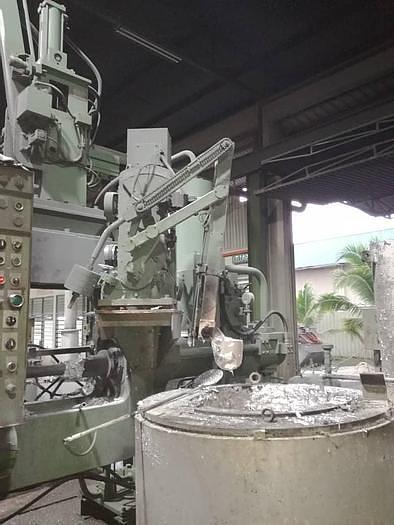

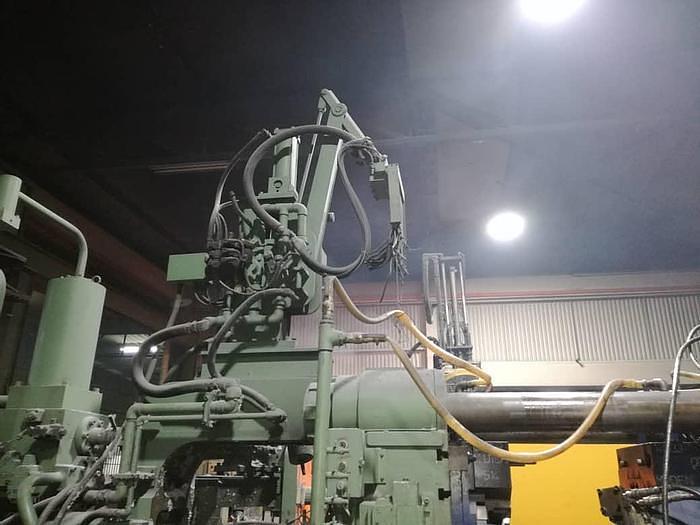

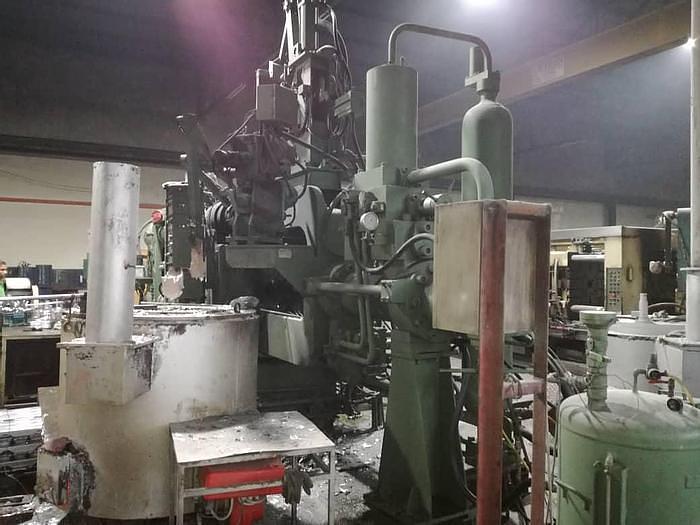

Accessories: 1)Ladle 2)Sprayer

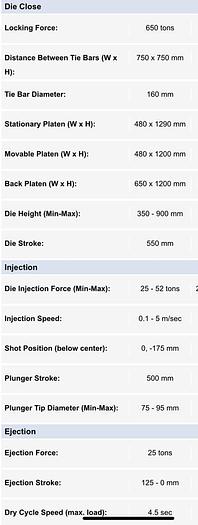

Specifications

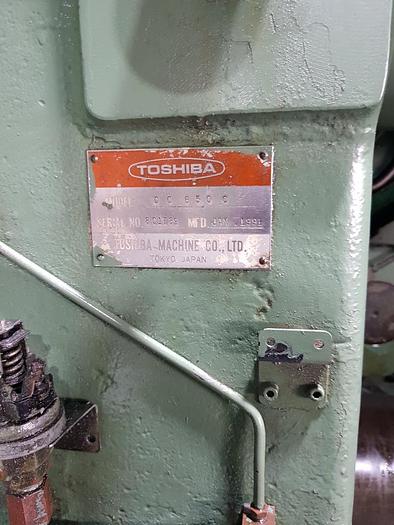

| Manufacturer | Toshiba |
| Model | DC650C |
| Year | 1991 |
| Condition | Used |
| Stock Number | 0441 |
| Locking Force | 650 tons |
| Distance Between Tie Bars (W × H) | 750 × 750 mm (29.5" × 29.5") |
| Tie Bar Diameter | 160 mm (6.3") |
| Stationary Platen (W × H) | 480 × 1290 mm (18.9" × 50.8") |
| Movable Platen (W × H) | 480 × 1200 mm (18.9" × 47.2") |
| Back Platen (W × H) | 650 × 1200 mm (25.6" × 47.2") |
| Die Height (Min-Max) | 350 - 900 mm (13.8" - 35.4") |
| Die Stroke | 550 mm (21.7") |
| Die Injection Force (Min-Max) | 25 - 52 tons |
| Injection Speed | 0.1 - 5 m/sec (3.9 inch) |
| Shot Position (below center) | 0 - 175 mm (0" - 6.9") |
| Plunger Stroke | 500 mm (19.7") |
| Plunger Tip Diameter | 75 - 95 mm (3" - 3.7") |
| Ejection Force | 25 tons |
| Ejection Stroke | 125 - 0 mm (4.9" - 0") |
| Dry Cycle Speed (max, load) | 4.5 sec |
