Miyano BNJ-34S CNC Turning Center Year 2002
Miyano BNJ-34S CNC Turning Center Year 2002
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Miyano |
| Model | BNJ-34S |
| Year | 2002 |
| Condition | Used |
| Stock Number | 1022 |
| Power Chuck & Size | 5"/4" Oil Hydraulic |
| Type of Collet Chuck | Stationary |
| L-Spindle Motor | VAC 5.5/7.5 kW |
| R-Spindle Motor | VAC 2.2/3.7 kW |
| L-Spindle Speed Range | 80~6,000 rpm |
| R-Spindle Speed Range | 67~5,000 rpm |
| X2-Axis Travel | 70 mm |
| Z2-Axis Travel | 515 mm |
| Turret Type | 12 Station Turret |
| Turret Indexing Time | 0.2 sec/1 Station |
| X1-Slide Travel | 142 mm |
| Z1-Slide Travel | 250 mm |
| Y1-Slide Travel | None |
| (Back Working Turret) Turret Type | 6 Station Segmental Turret |
| Tool Spindle Speed Range | 100~4,000 rpm |
| Tool Spindle Driving Motor | AC Servo 2.5 kW |
| Machine Height | 1,720 mm (67.7") |
| Machine Weight | 5,100 kg (11,230 lbs) |

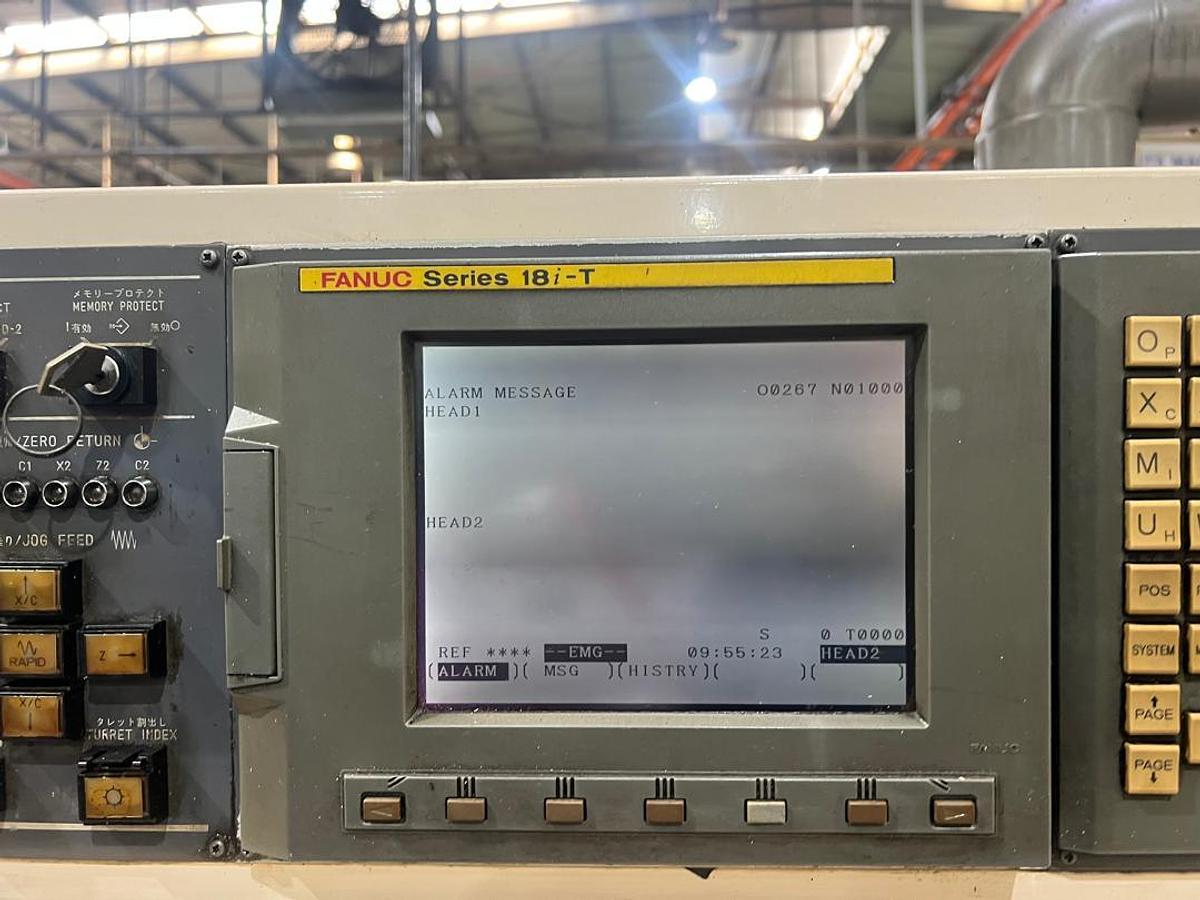

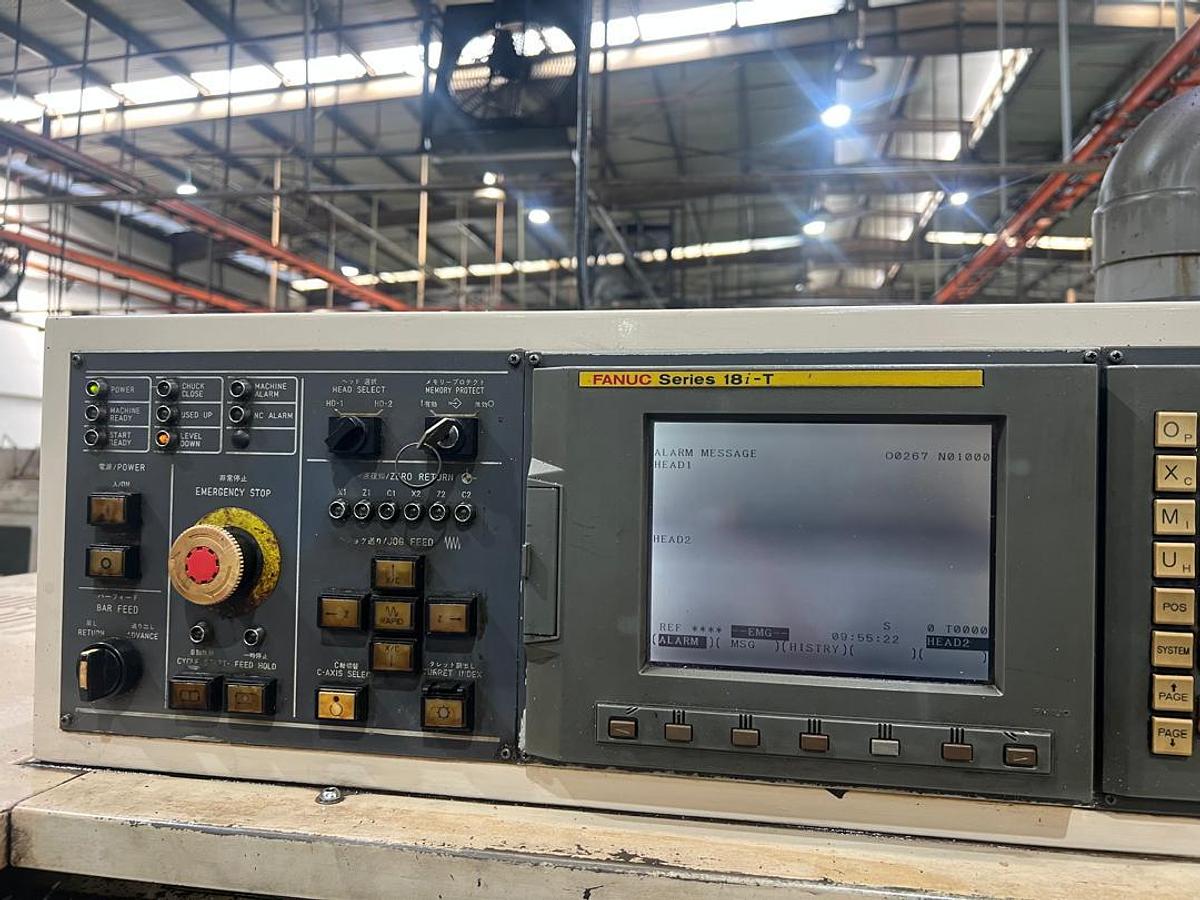

| Control type | Fanuc 18i-T |
