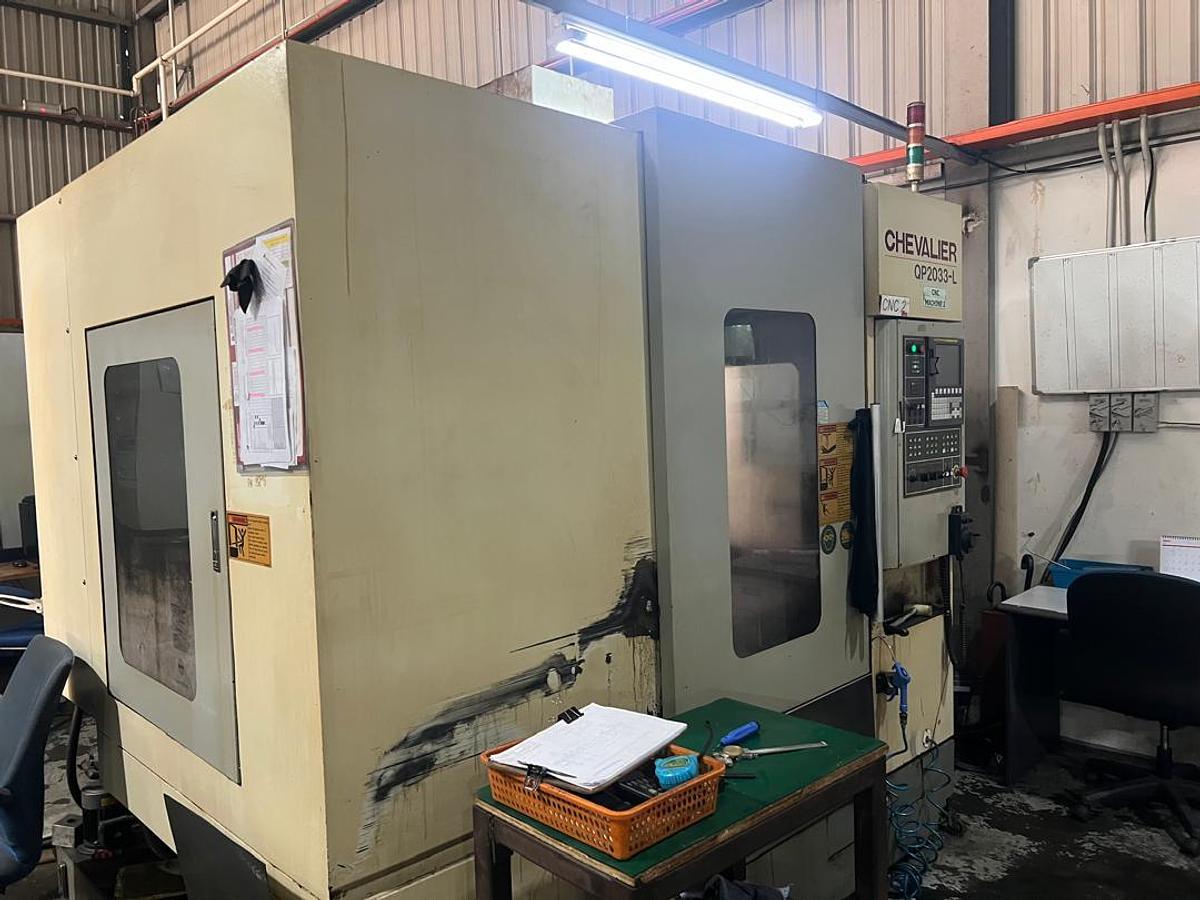

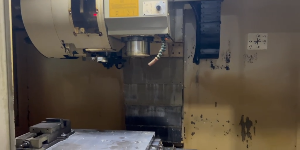

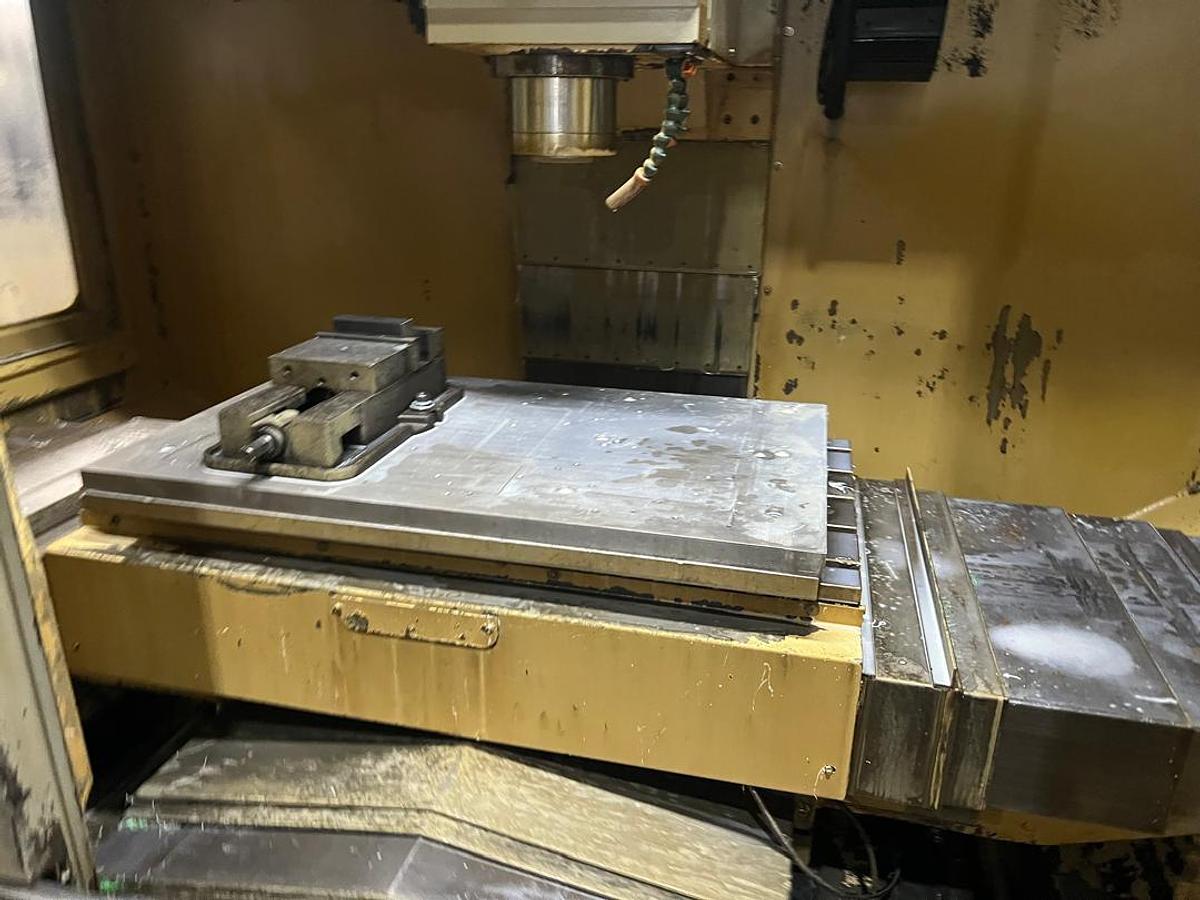

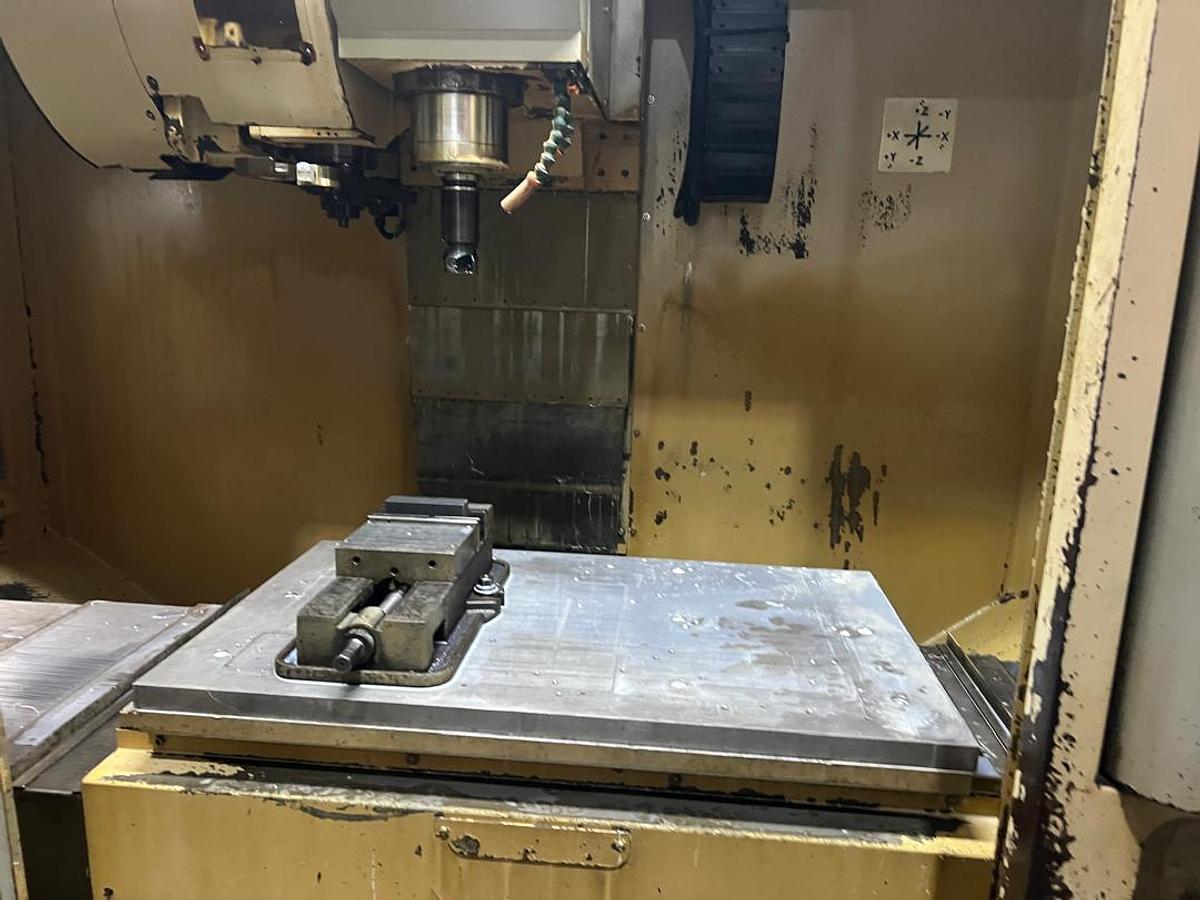

Chevalier QP2033-L Vertical Machining Center Year 2010
Chevalier QP2033-L Vertical Machining Center Year 2010
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Chevalier |
| Model | QP2033-L |
| Year | 2010 |
| Condition | Used |
| Stock Number | 1008 |

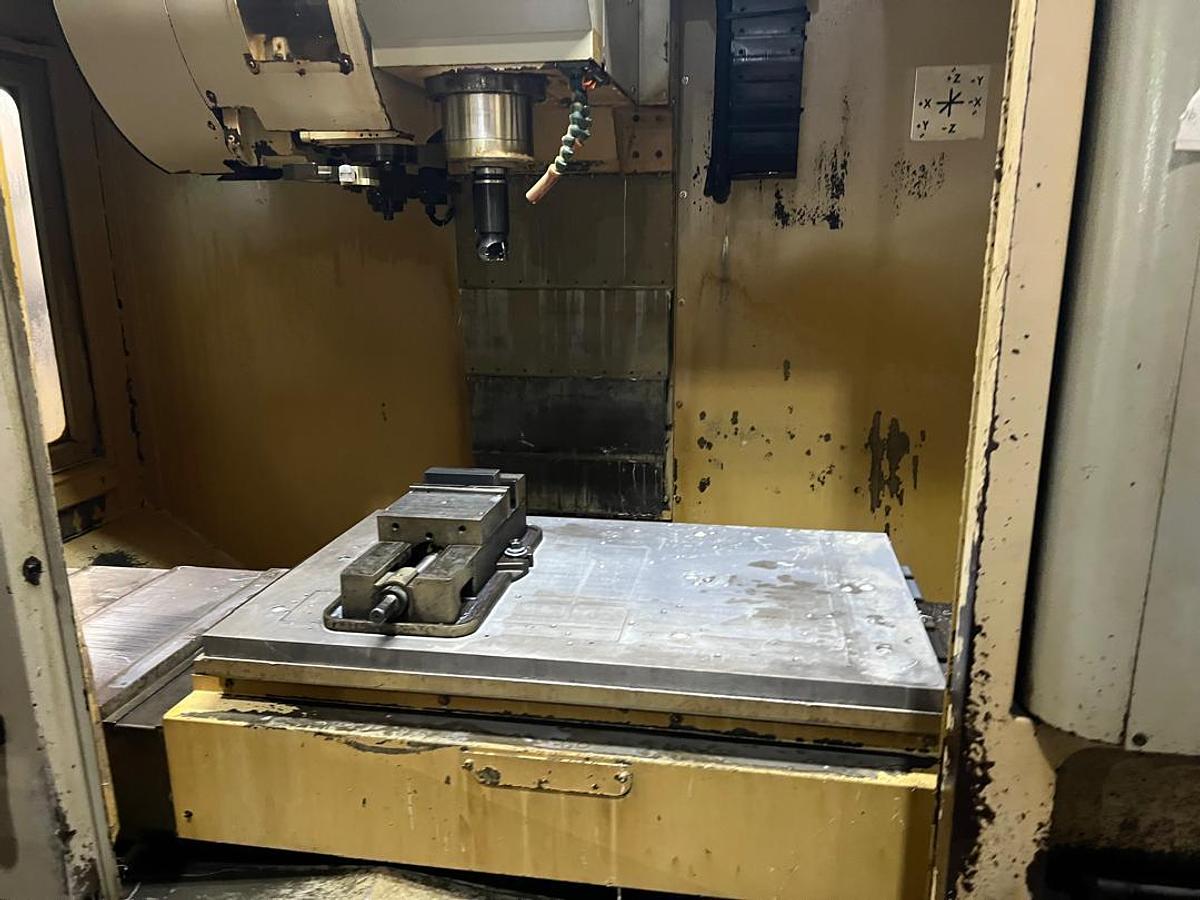

| Table Size | 1000 × 510 mm |
| Max Table Load | 500 kg |
| X Travel | 850 mm |
| Y Travel | 530 mm |
| Z Travel | 510 mm |
| Spindle Nose to Table | 150 – 660 mm |
| Spindle Center to Column | 585 mm |
| Spindle Taper | BT40 BIG PLUS |
| Spindle Speed (Belt Drive) | 10,000 rpm |
| Spindle Diameter | 70 mm |
| Cutting Feed Rate | 1 – 10 m/min |
| Spindle Speed (Direct Drive) | 12,000 rpm (Optional: 15,000 rpm) |
| Tool Shank | BT40 (Optional: CT40 or DIN40) |
| Max Tool Length | 300 mm |
| Tool Change Time (T-T) | 2 sec |
| Max Tool Diameter | 80 mm |
| Machine Weight | 5800 kg |
| Max Tool Weight | 7 kg |
| Pull Stud | P40T-1 |
| Machine Dimensions (W × D × H) | 2430 × 3020 × 2963 mm |
| ATC Capacity | 24 + 1 Tools (Optional: 30 Tools) |
