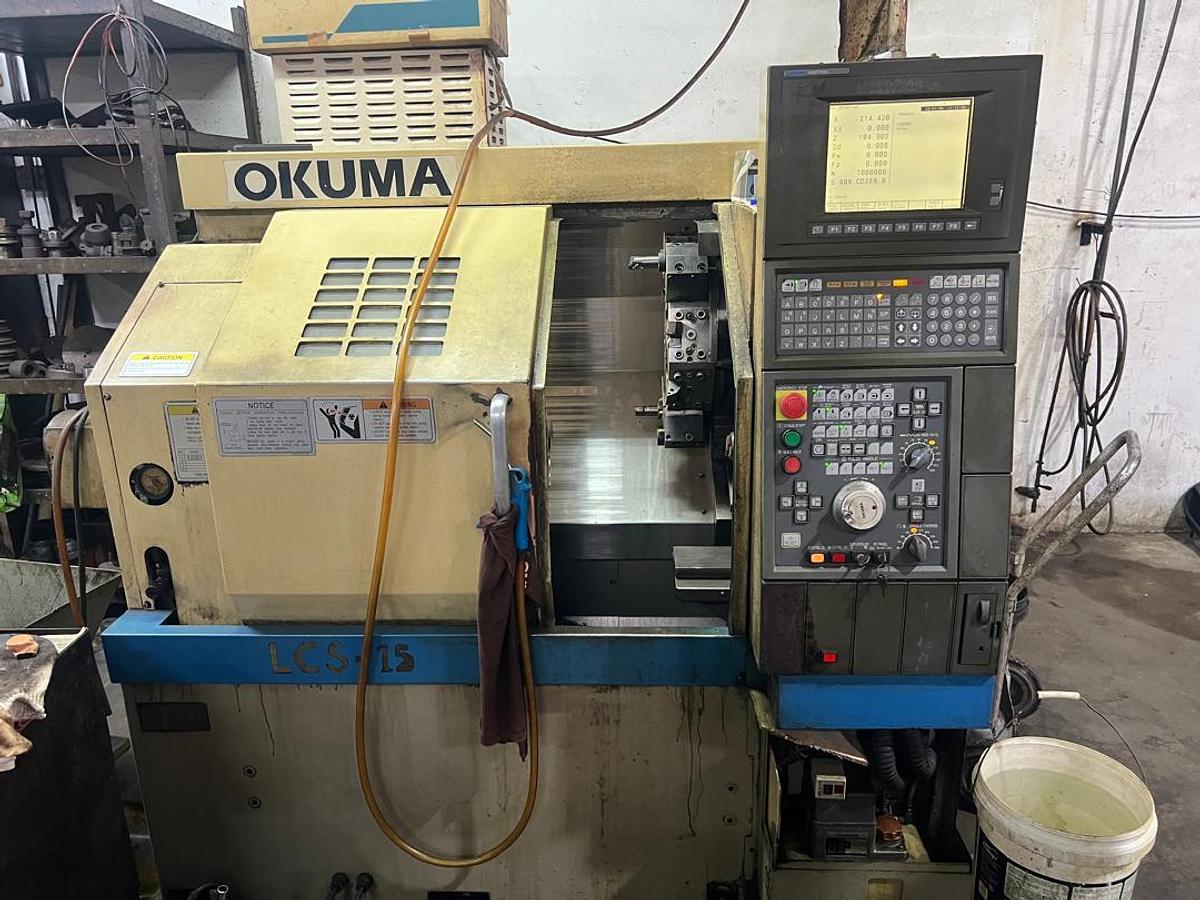

OKUMA LCS -15 CNC Lathe
OKUMA LCS -15 CNC Lathe
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Okuma |
| Model | LCS -15 |
| Condition | Used |
| Stock Number | 1006 |

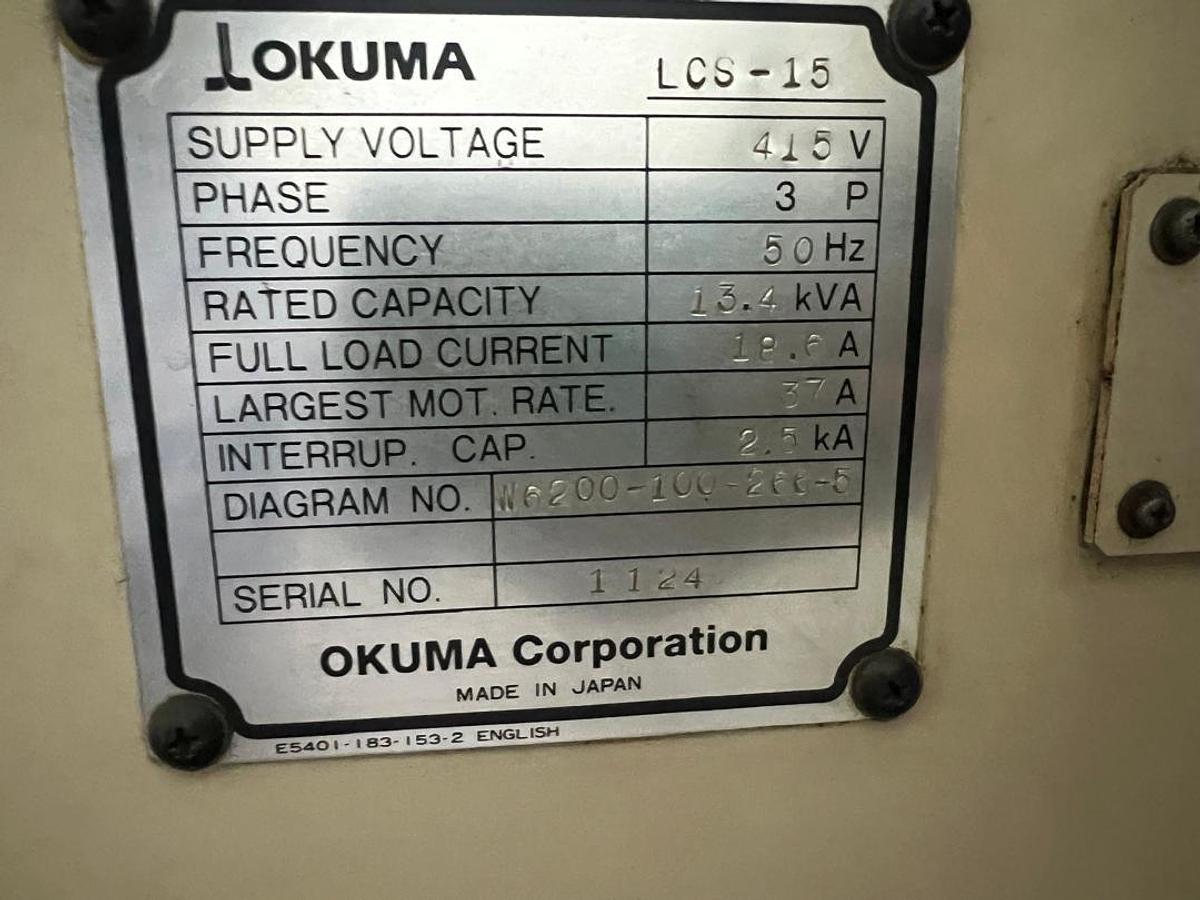

| Supply Voltage | 415 V |
| Phase | 3 Phase |
| Frequency | 50 Hz |
| Rated Capacity | 13.4 kVA |
| Full Load Current | 18.6 A |
| Largest Motor Rating | 37 A |
| Interrupt Capacity | 2.5 kA |
| Electrical Diagram No. | M6200-100-200-5 |
| Maximum Turning Length | 280 mm |
| Maximum Turning Diameter | 270 mm |
| Swing Over Bed | 450 mm |
| Swing Over Cross Slide | 350 mm |
| X-Axis Travel | 155 mm |
| Z-Axis Travel | 320 mm |
| Spindle Nose | A2-6 |
| Spindle Bore | 100 mm |

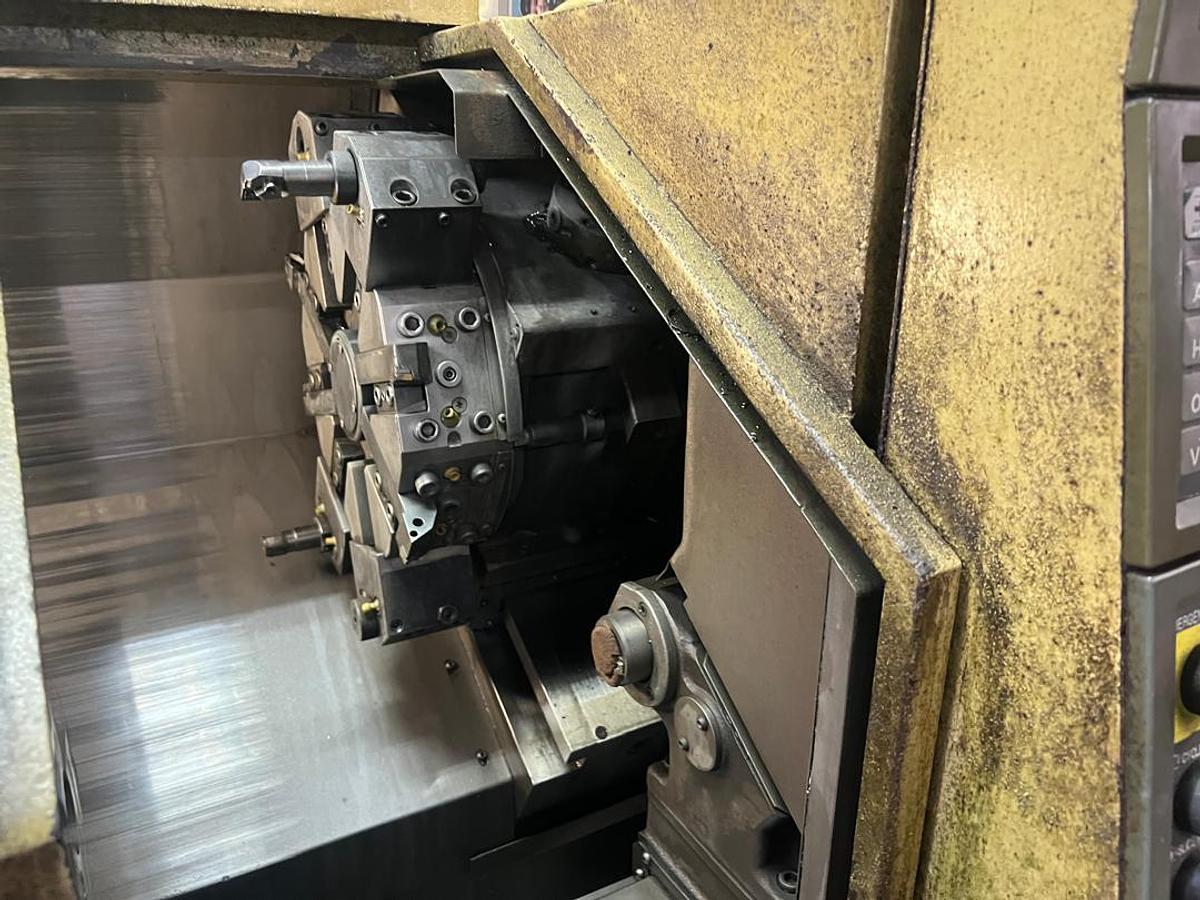

| Turret Capacity | 12 Stations |
| Maximum Spindle Speed | 4,200 rpm |
| Spindle Motor Power | 7.5 kW |
| Tailstock | No |
| Bar Feeder | No |
| Machine Weight | 2,800 kg |
