Dahlih MCV-1250 Vertical Machining Center
Dahlih MCV-1250 Vertical Machining Center
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Dahlih |
| Model | MCV-1250 |
| Condition | Used |
| Stock Number | 0991 |
| Table Size | 1,400 x 820 mm |
| T-Slots | 22 mm x 5 |
| Maximum Table Load | 1,500 kg |
| X-Axis Travel | 1,250 mm |
| Y-Axis Travel | 650 mm |
| Z-Axis Travel | 700 mm |
| Rapid Traverse (X/Y) | 20 m/min |
| Rapid Traverse (Z) | 12 m/min |
| Cutting Feed Rate | 5,000 mm/min |
| Minimum Input Increment | 0.001 mm |
| Spindle Taper | NT50 |
| Spindle Speed | 4,500 rpm |
| Spindle Speed Range | Two-speed gear variable |
| Tool Magazine Capacity | 24 tools |
| Tool Holder | BT50 |
| Maximum Tool Size | Ø110 x 350 mm |
| Maximum Tool Weight | 15 kg |
| Tool Selection | Random |
| Spindle Motor (Continuous) | 11 kW |
| Spindle Motor (30-Min Rating) | 15 kW |
| X-Axis Motor | 4 kW |
| Y-Axis Motor | 4 kW |
| Z-Axis Motor | 3 kW |
| Machine Weight | 10,500 kg |
| Floor Space | 5,006 x 4,256 mm |

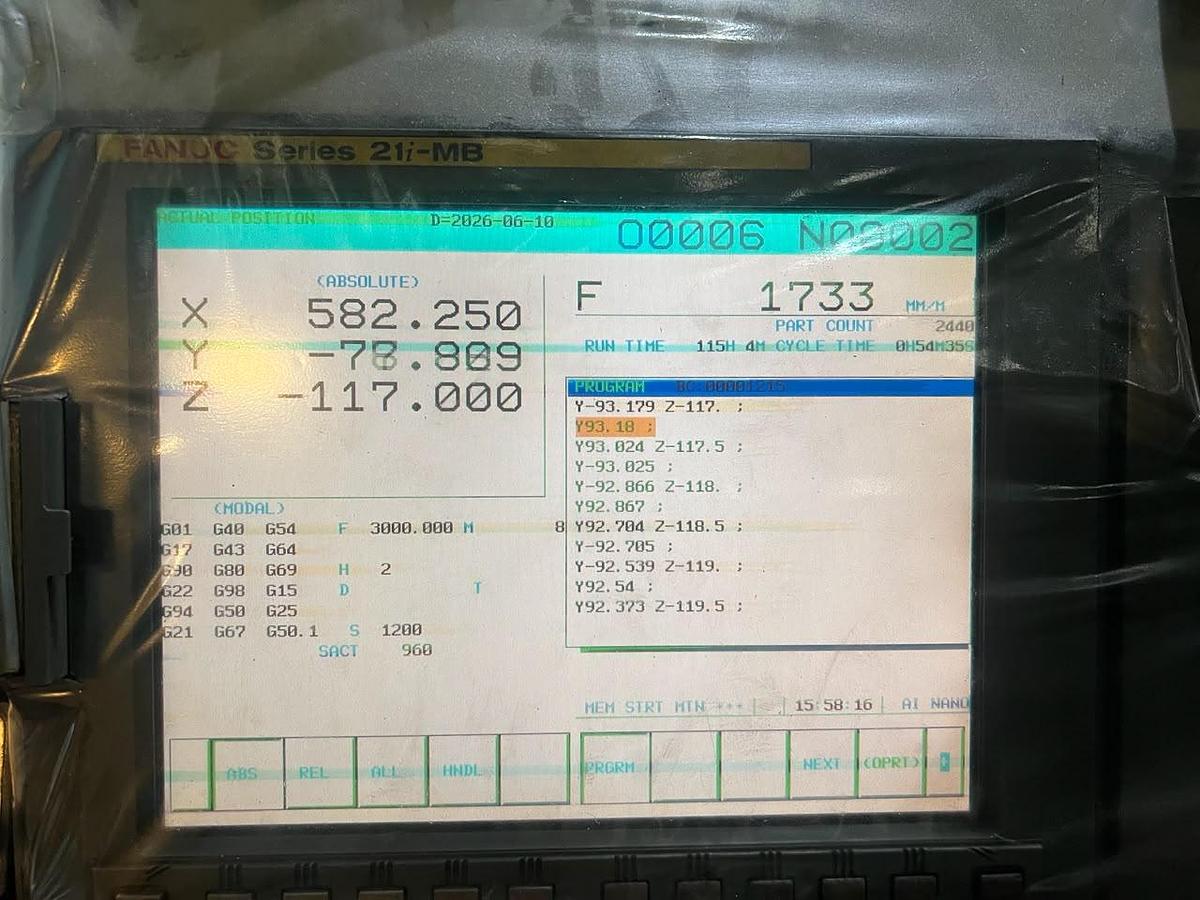

| CNC Control | Fanuc Series 21i-MB |
