Hwacheon Cutex-160A CNC Lathe Year 2012
Hwacheon Cutex-160A CNC Lathe Year 2012
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Hwacheon Machine Tool Co.,Ltd |
| Model | Cutex-160A |
| Year | 2012 |
| Condition | Used |
| Serial Number | MO24360I3F G |
| Stock Number | 0988 |

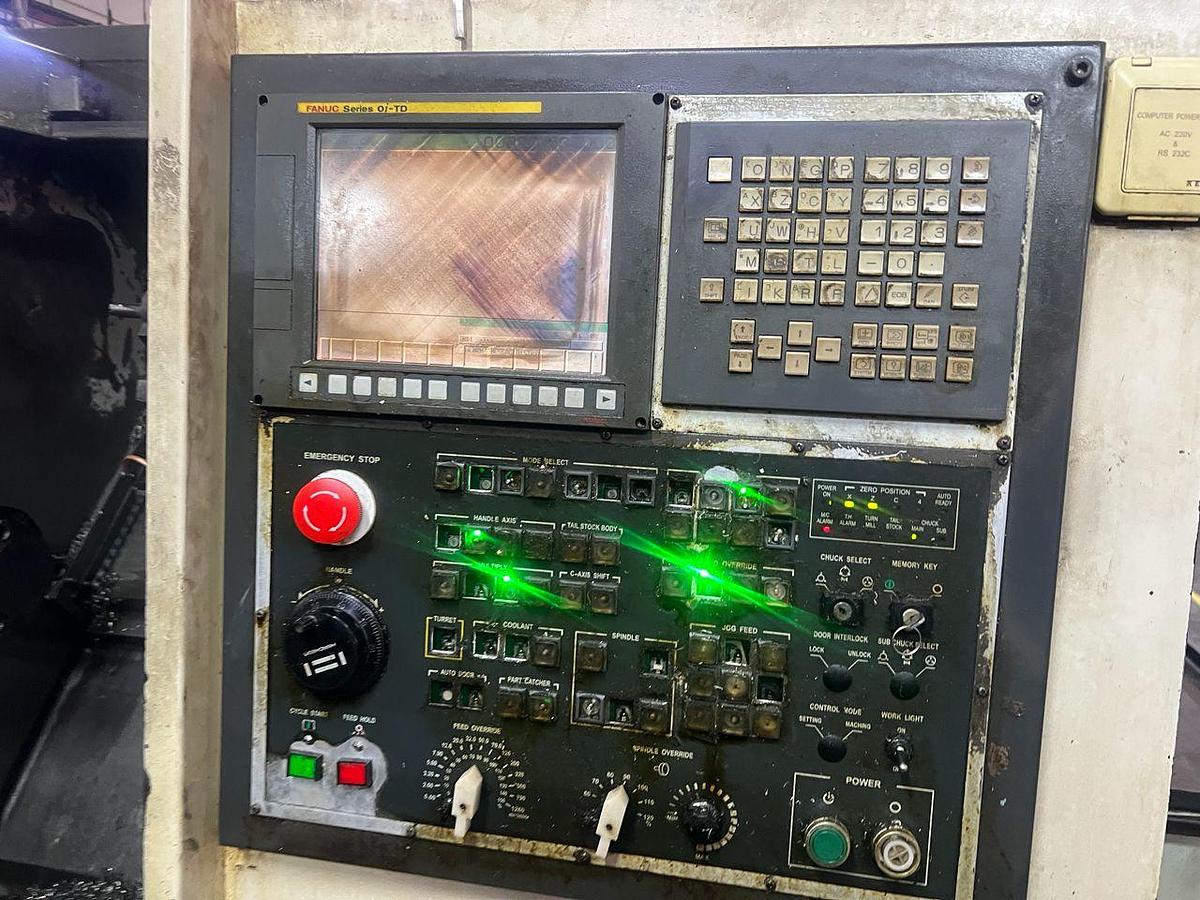

| CNC Control | Fanuc Series 0i-TD |
| Swing Over Bed | Ø550 mm (21.65") |
| Max. Cutting Diameter | Ø300 mm (11.81") |
| Standard Cutting Diameter | Ø186 mm (7.32") |
| Max. Cutting Length | 300 mm (11.81") |
| Spindle Nose Type | A2-5 |
| Chuck Size | 6" |
| Max. Spindle Speed | 6,000 rpm |
| Through Spindle Hole Diameter | Ø56 mm (2.20") |
| Max. Bar Size | Ø45 mm (1.77") |
| Spindle Bearing Inner Diameter | Ø90 mm (3.54") |
| Number of Tool Stations | 12 |
| Turret Indexing Time | 0.15 sec/step |
| Rapid Speed (X/Z) | 36 / 36 m/min |
| Lubrication | 2 L |
| Hydraulic | 11 L |
| Coolant | 81 L |
| Electrical Power Supply | 20 kVA |
| Height | 1,720 mm (67.72") |
| Weight | 3,200 kg |
