Tornos Multiswiss 6x16 Auto Lathe Machine Year 2019
Tornos Multiswiss 6x16 Auto Lathe Machine Year 2019
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Tornos |
| Model | Multiswiss 6x16 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 0967 |
| Bar Capacity | 4 – 16 mm |
| Maximum Part Length | 40 mm |
| Maximum Remnant Length | 70 mm |
| Maximum Main Spindle Speed | 8,000 rpm |
| Main Spindle Power | 5.6 kW |
| Main Spindle Torque | 8 Nm |
| Maximum Pick-Off Spindle Speed | 8,000 rpm |
| Pick-Off Spindle Motor Power | 5 kW |
| Pick-Off Spindle Motor Torque | 8 Nm |
| Main Spindle Z-Axis Stroke | 50 mm |
| Pick-Off Spindle Z-Axis Stroke | 150 mm |
| Number of Linear Axes | 14 |
| Number of Y-Axis | 1 (Optional) |
| Maximum Number of Tools | 18 |
| Spindle Cooling | With Oil |
| Cutting Oil Filtration | 50 µm |
| Oil Tank Capacity | 900 L |
| Standard Pump Flow Rate | 100 L/min |
| Machine Length | 5,920 mm |
| Machine Width | 1,440 mm |
| Machine Height | 2,120 mm |
| Machine Weight | 7,000 kg |
| Installed Power | 59 kW |

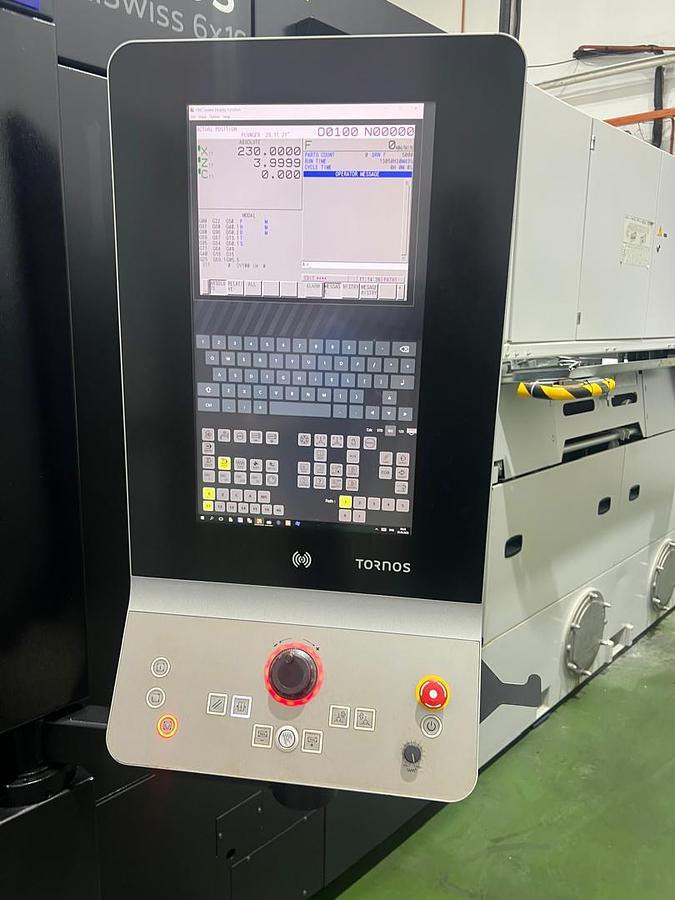

| CNC Control | Fanuc |
