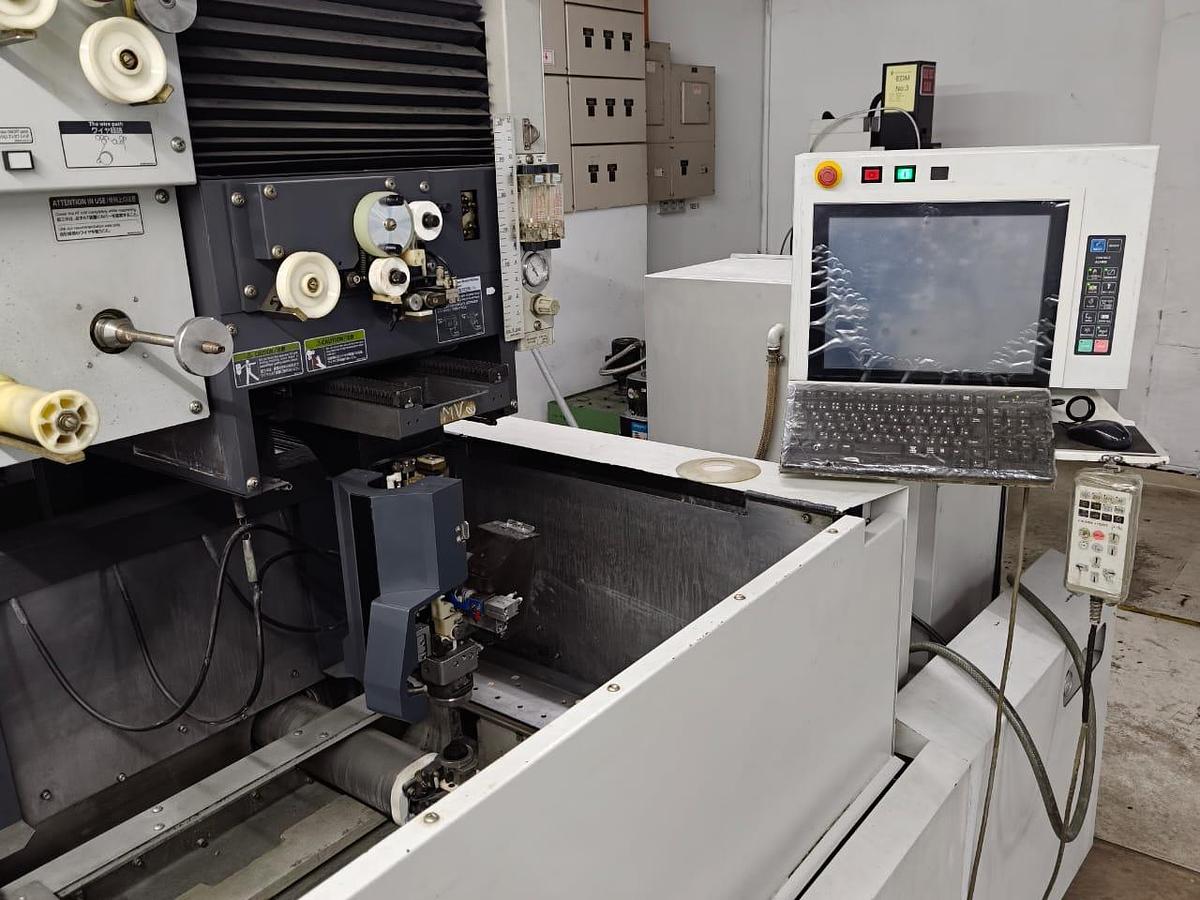

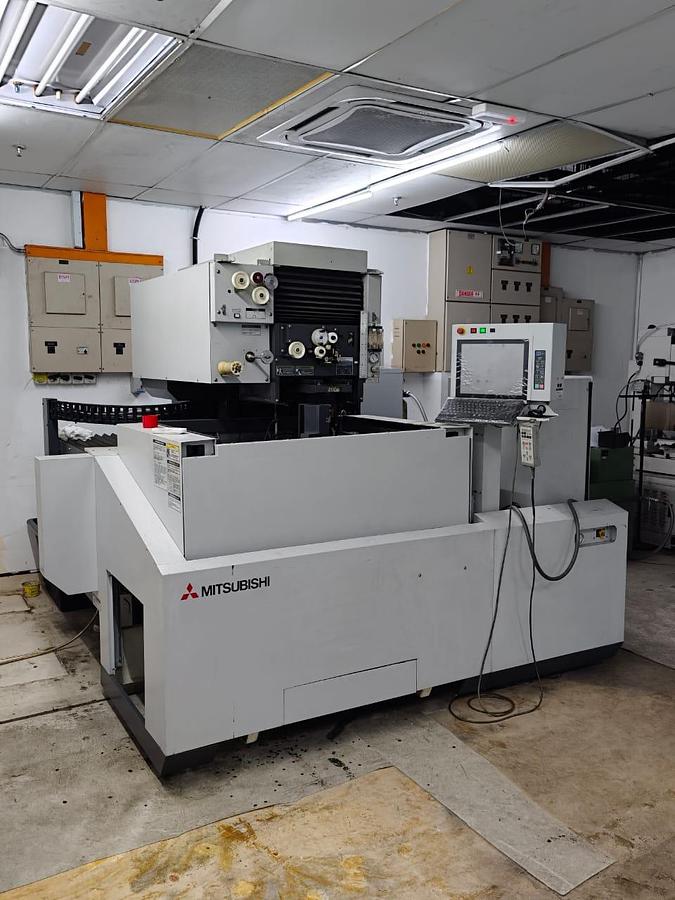

Mitsubishi MV2400S Wire Cut EDM Machine Year 2014
Mitsubishi MV2400S Wire Cut EDM Machine Year 2014
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Mitsubishi |
| Model | MV2400S |
| Year | 2014 |
| Condition | Used |

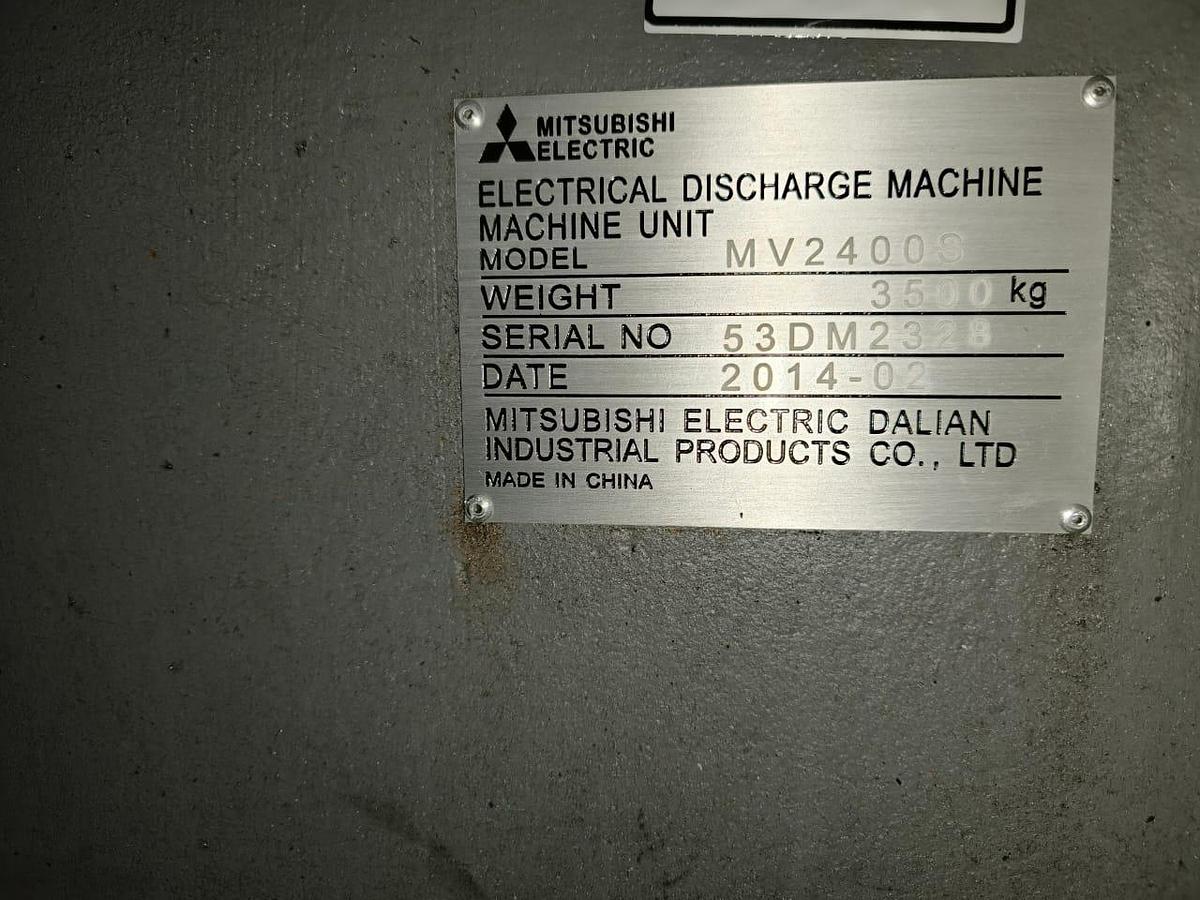

| Serial Number | 53DM2328 |
| Stock Number | 0965 |
| Max. Workpiece Weight | 1,500 kg |
| Table Size | 840 × 640 mm |
| Table Type | U-Shaped Hardened Table |
| U/V Axis Travel | ±75 × ±75 mm |
| Wire Diameter | Ø0.10 – 0.30 mm |
| Working Tank Type | Automatic Vertical Front Door |
| Filtering Method | 2 Filters |
| Machine Unit Dimensions | 2103 × 2150 mm |
| Column Up Unit Dimensions | 2103 × 2380 mm |
| Max. Workpiece Dimensions | 1050 × 820 × 305 mm |
| Optional Table Type | 4-Sided Hardened Table (Column Up Specification) |
| X/Y/Z Axis Travel | 600 × 400 × 310 mm (Column Up Specification: 420 mm) |
| Machine Weight | 3,500 kg (Column Up Specification: 3,650 kg) |
| Dielectric Fluid Reservoir Capacity | 860 L (Column Up Specification: 980 L) |
| Water Purifier Capacity (Ion Exchange Resin) | 10 L |
| Machine dimensions (L × W × H) | 2687 × 3030 × 2150 mm |
| Column Up Machine Dimensions | 2837 × 3030 × 2380 mm |
