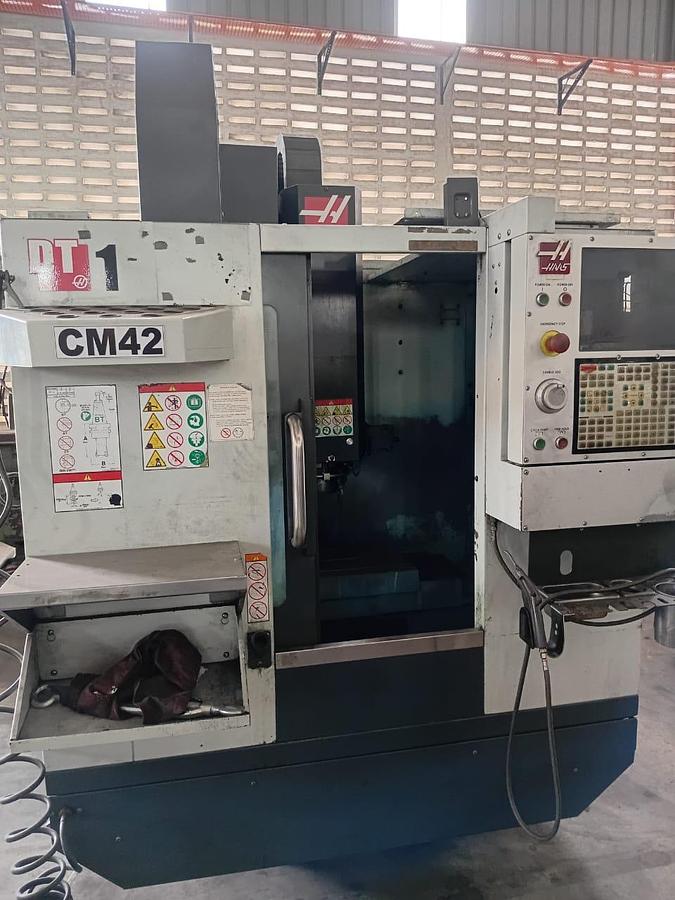

HAAS DT-1 Vertical Maching Center Year 2020
HAAS DT-1 Vertical Maching Center Year 2020
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications

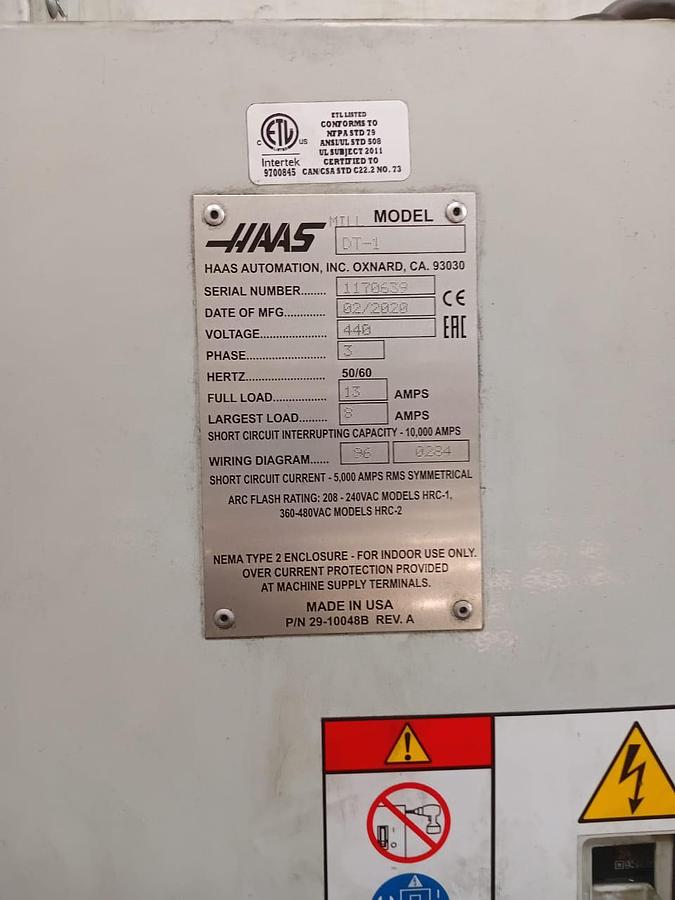

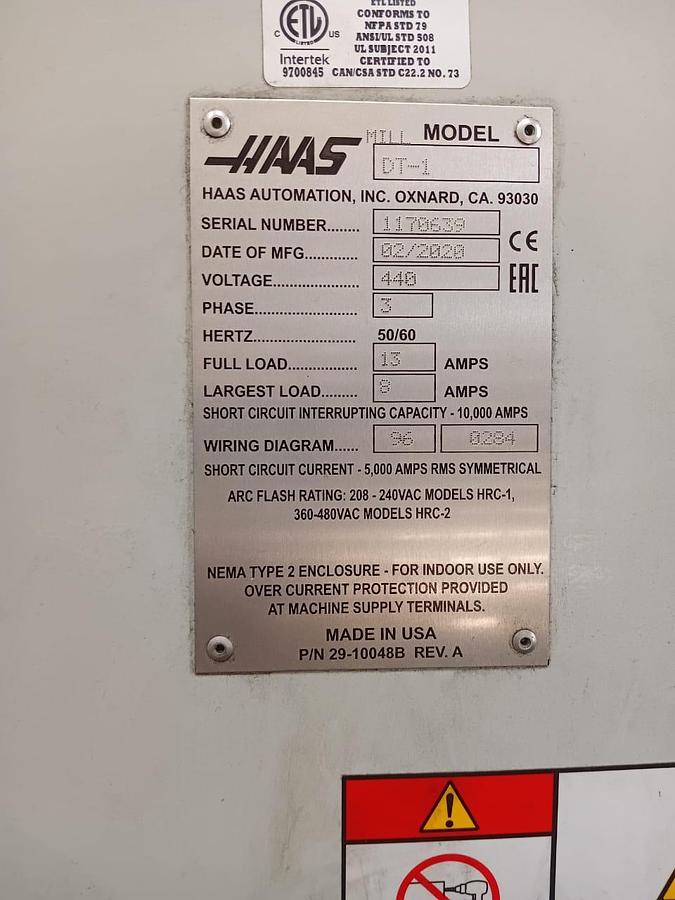

| Manufacturer | HAAS |
| Model | DT-1 |
| Year | 2020 |
| Condition | Used |
| Serial Number | 1170639 |
| Stock Number | 0963 |
| Voltage | 440 V |
| Phase | 3 Phase |
| Frequency | 50/60 Hz |
| Full Load Current | 13 Amps |
| Largest Load Current | 8 Amps |
| Short Circuit Interrupting Capacity | 10,000 Amps |
| Wiring Diagram | 96-3224F |
| X Axis | 508 mm |
| Y Axis | 406 mm |
| Z Axis | 394 mm |
| Spindle Power | 11.2 kW |
| Spindle Speed | 10,000 rpm |
| Drive System | Inline Direct-Drive |
| Spindle Taper | BT30 |
| Bearing Lubrication | Air / Oil Injection |
| Cooling System | Air Cooled |

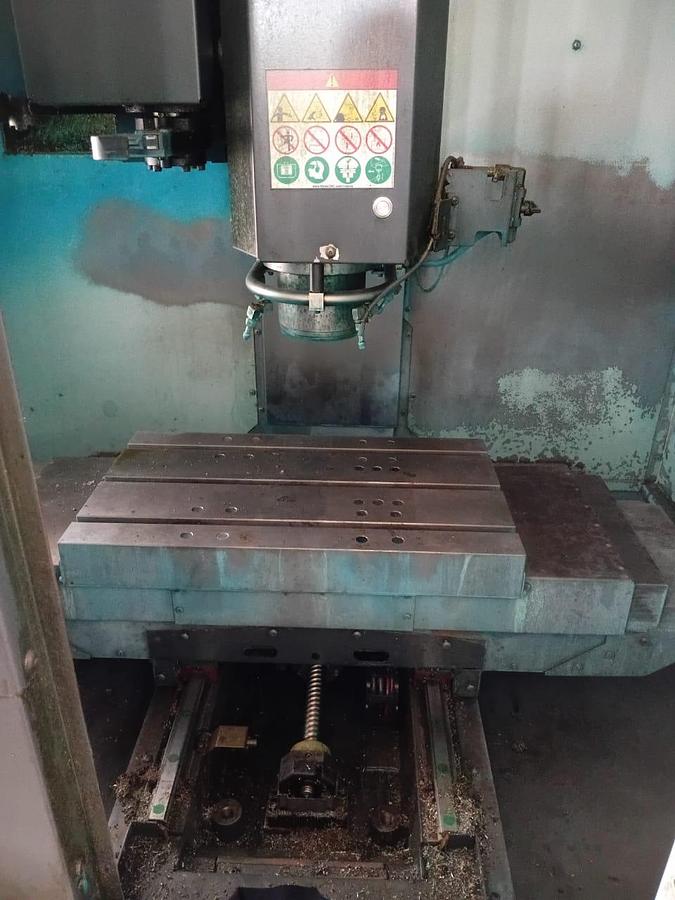

| Table Size | 660 × 381 mm |
| T-Slot Width | 15.90 – 16.00 mm |
| T-Slot Center Distance | 125 mm |
| Number of T-Slots | 3 |
| Max Cutting Feedrate | 30.5 m/min |
| Rapid Traverse (X/Y/Z) | 61 m/min |
| Max Thrust X Axis | 11,343 N |
| Max Thrust Y Axis | 11,343 N |
| Max Thrust Z Axis | 18,683 N |
| Tool Changer Type | SMTC |
| Tool Capacity | 20 + 1 |
| Max Tool Diameter | 51 mm |
| Max Tool Length | 178 mm |
| Max Tool Weight | 2.5 kg |
| Tool-to-Tool Time | 1.75 sec |
| Chip-to-Chip Time | 2.00 sec |
| Max Tapping Speed | 5,000 rpm |
| Coolant Tank Capacity | 208 L |
| Minimum Air Pressure | 5.5 bar |
| Air Hose Size | 3/8 in |
| Machine Weight | 2,336 kg |
