Wuxi Jinghua CJK5116G Vertical Turning Lathe Year 2018
Wuxi Jinghua CJK5116G Vertical Turning Lathe Year 2018
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Wuxi Jinghua |
| Model | CJK5116G |
| Year | 2018 |
| Condition | Used |
| Stock Number | 0960 |
| Max. turning diameter | 1600 mm |

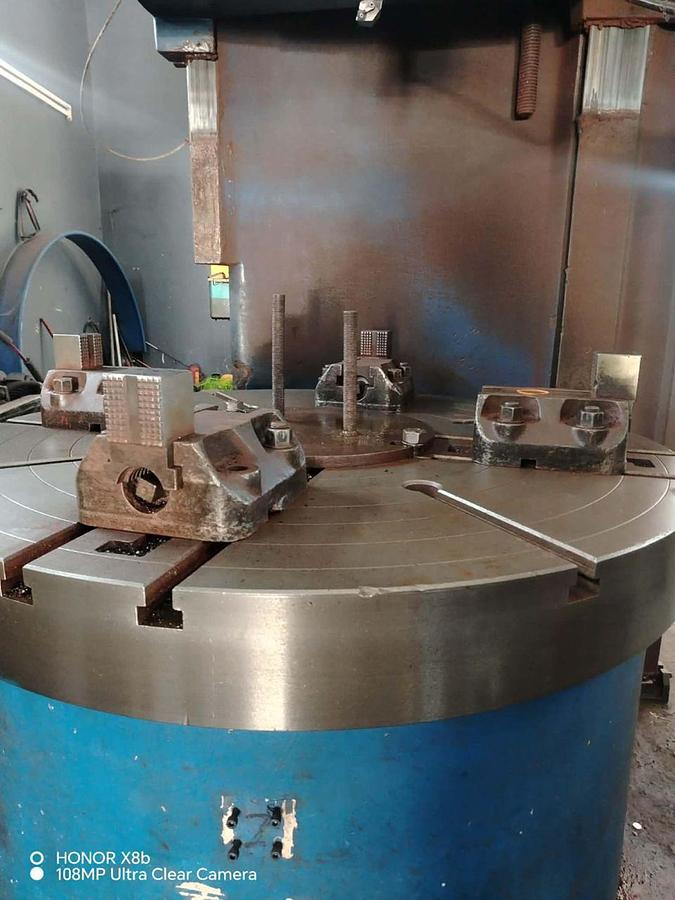

| Working table diameter | 1400 mm |
| Max. weight of workpiece | 8 t |

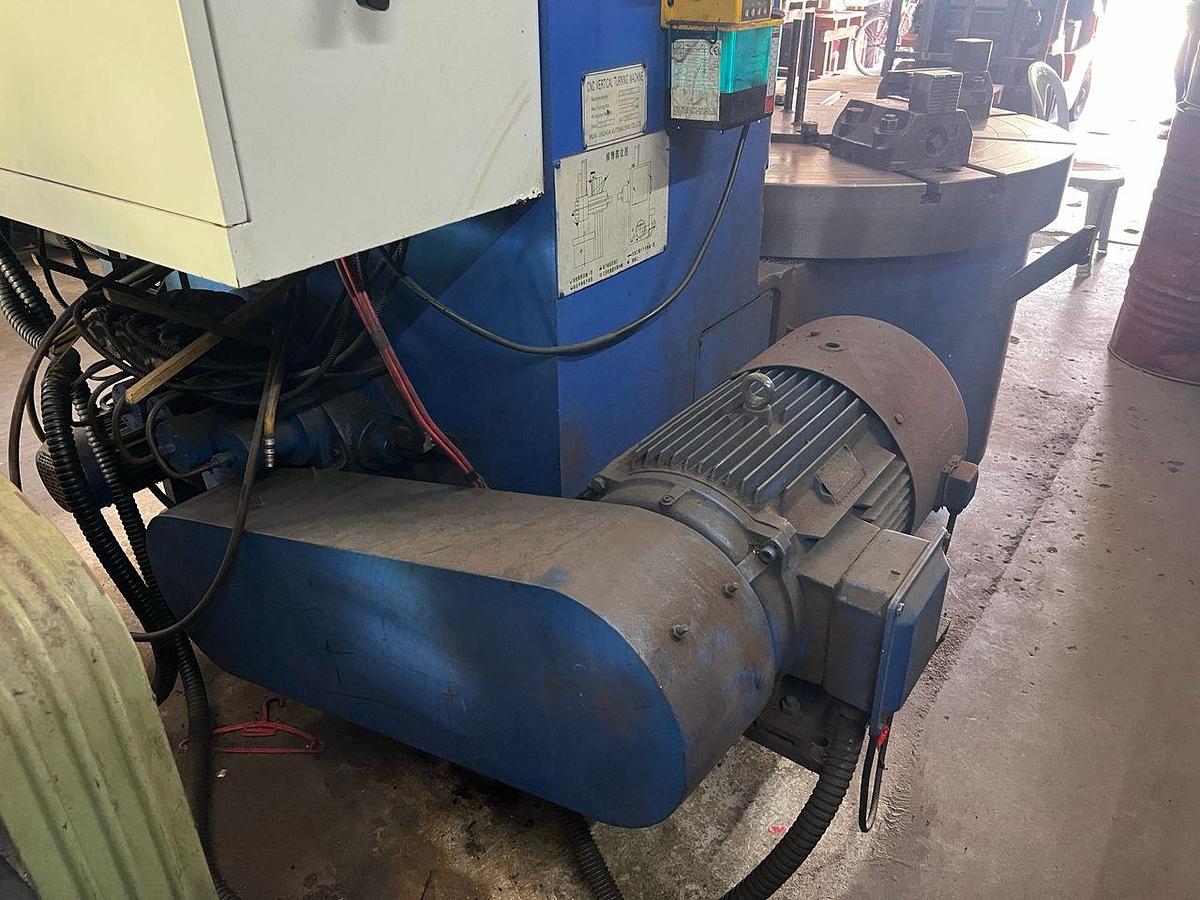

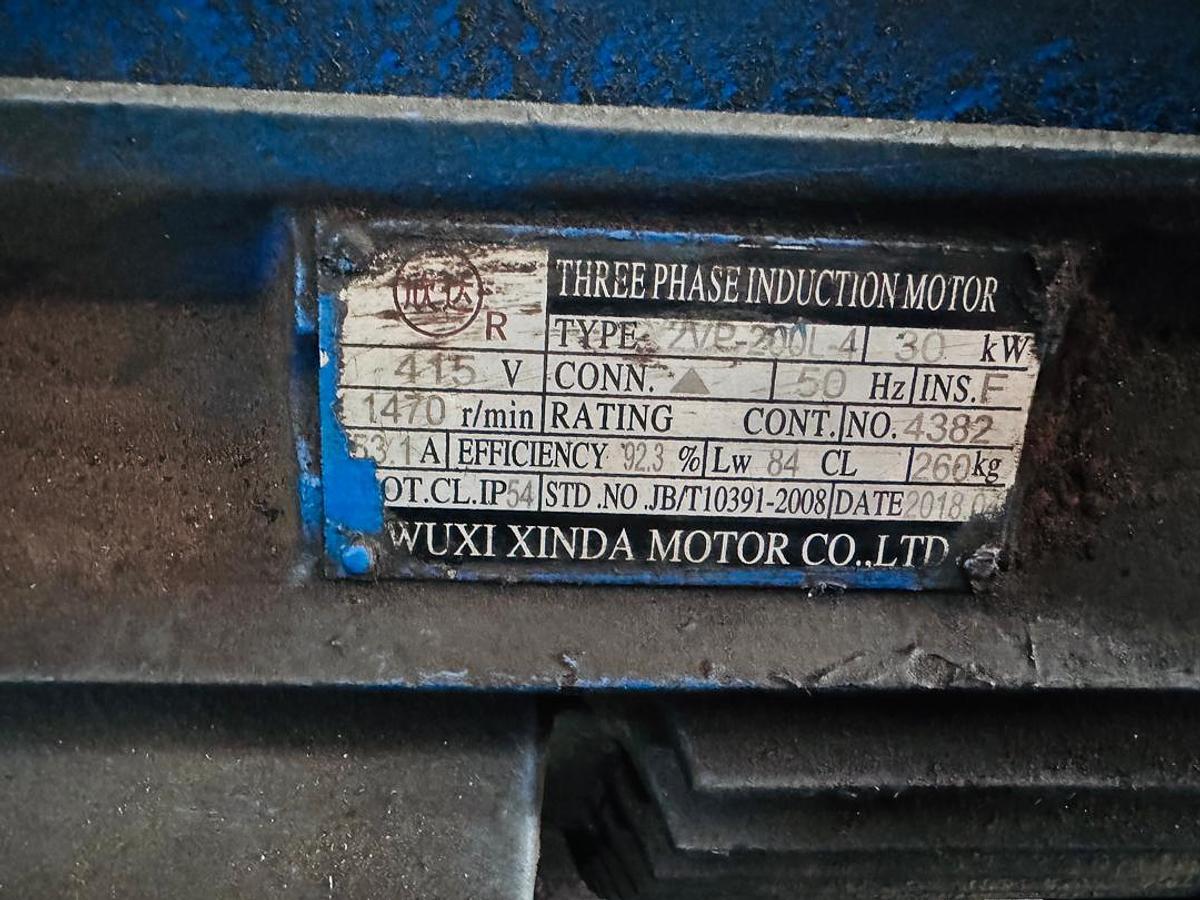

| Power of main motor | 30 kW |

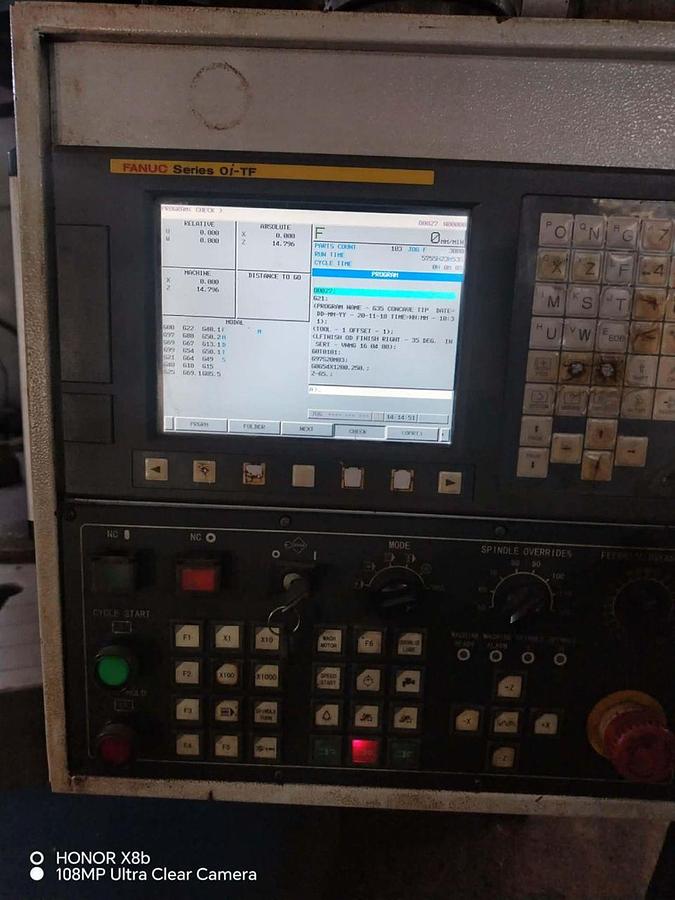

| CNC Control | Fanuc Series 0i-TF |
| Max. cutting force of rail head | 25 kN |
| Max. cutting force of slide head | 20 kN |
| Max. torque of working table | 25 kN·m |
| Level travel of rail head | 800 mm |
| Ram horizontal travel of side head | 630 mm |
| Vertical travel of side head | 980 mm |
| Rapid speed of tool post | 1800 mm/min |
| Height of tool bar section | 40 mm |
| Machine dimensions | 2830 × 2870 × 3870 mm |
