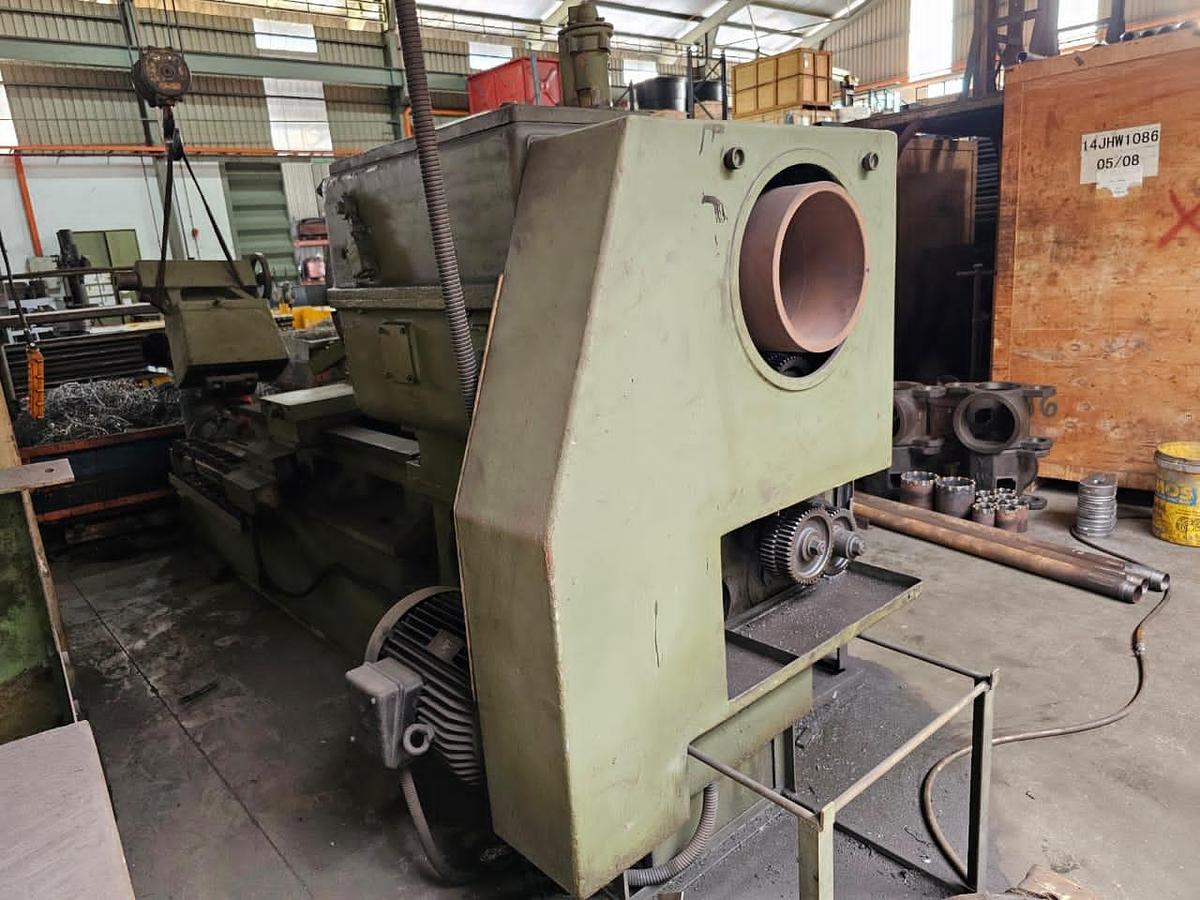

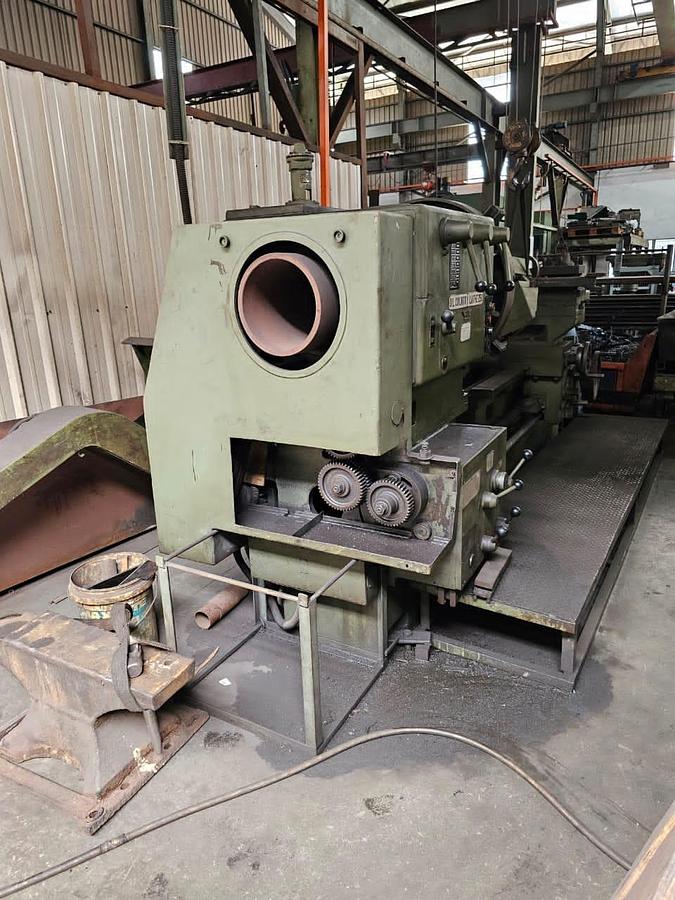

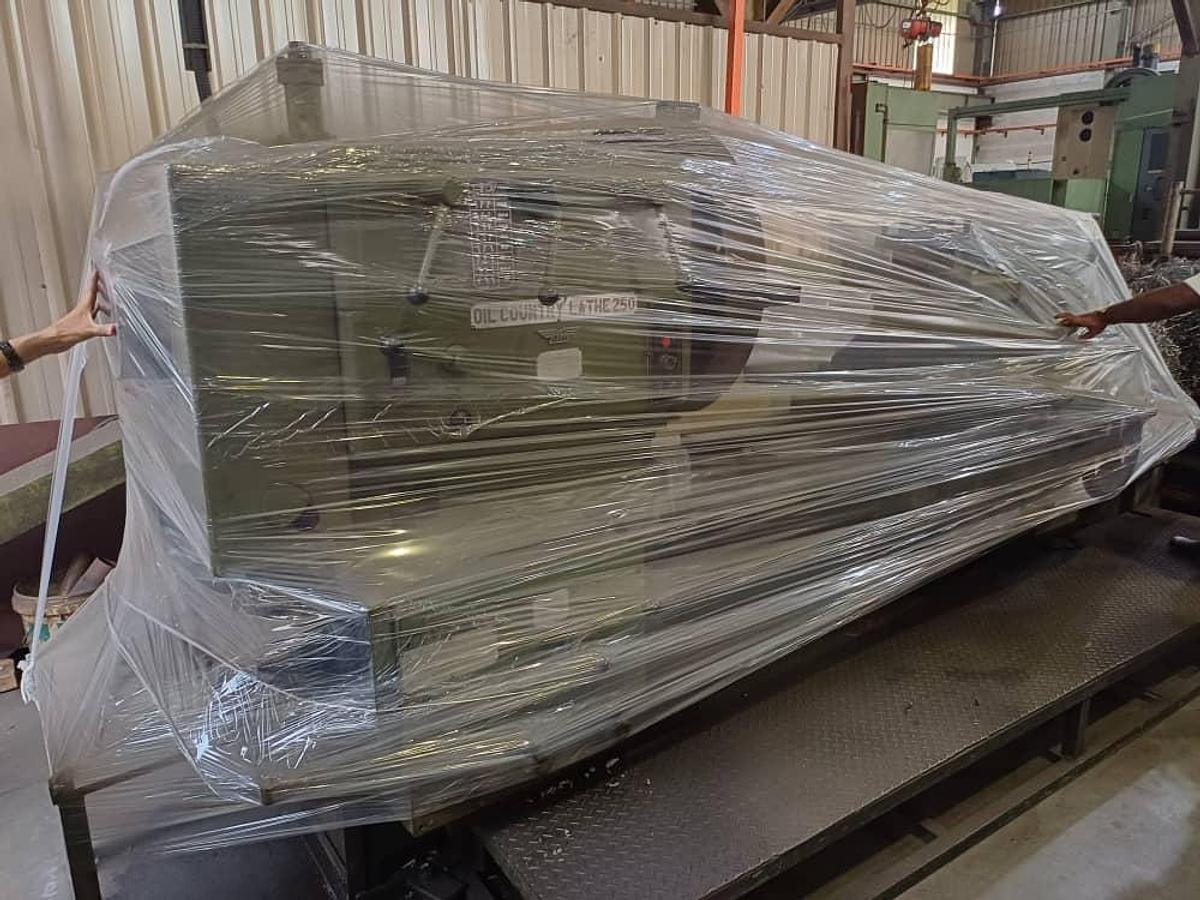

Mysore Kirloska Conventional Lathe
Mysore Kirloska Conventional Lathe
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Mysore Kirloska |
| Condition | Used |
| Stock Number | 0909 |
| Spindle bore | 260 mm |
| Chuck | 4-jaw OD 760 mm × ID 203 mm; 4-jaw OD 608 mm × ID 260 mm |
| Swing over bed | 1,000 mm |
| Swing over cross slide | 780 mm |
| Swing over gap | 1,640 mm |
| Gap width | 0 – 1,000 mm (sliding bed) |
| Distance between centres | 2,100 mm (maximum) |
| Spindle speeds | 8 speeds, 14 – 355 rpm |
| Motor | 15 HP (3P, 415 V) |
| Thread range | 2 – 28 TPI; 1.125 – 14 mm |
| Toolpost size | 203 × 203 × 63.5 × 38.1 mm |
