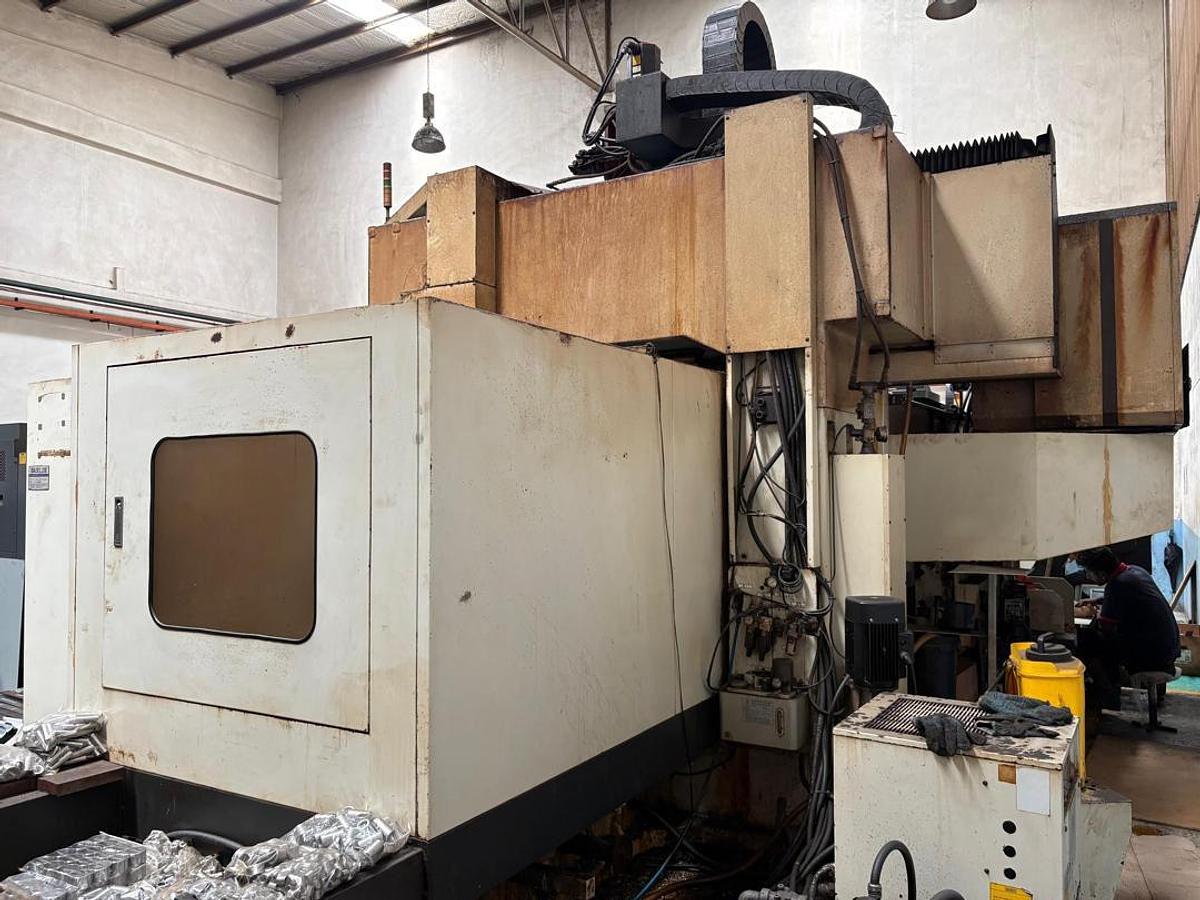

Dahlih DCM-2213 Double Column Machining Center Year 2008
Dahlih DCM-2213 Double Column Machining Center Year 2008
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Dahlih |
| Model | DCM-2213 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 0891 |

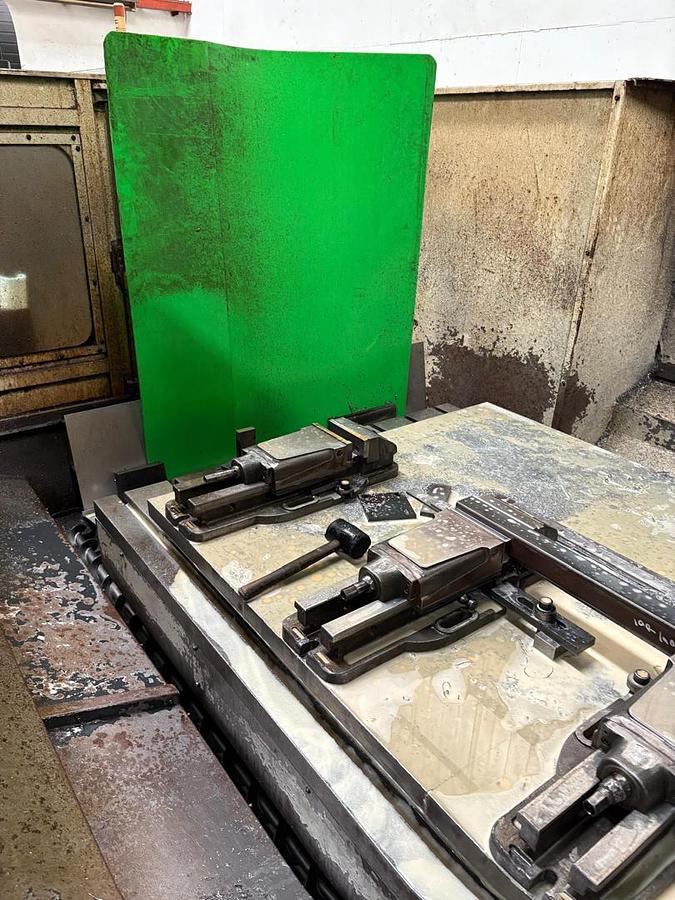

| Table size | 2,500 × 1,350 mm |
| Maximum table load | 4,000 kg |
| Distance between table top and ground | 905 mm |
| X-axis travel | 2,200 mm |
| Y-axis travel | 1,300 mm |
| Z-axis travel | 800 mm |
| Spindle nose to table surface | 200–1,000 mm |
| Distance between columns | 1,400 mm |
| Cutting feed rate | 1–10,000 mm/min |
| Minimum input increment | 0.01 mm |
| Spindle taper | No. 50 |
| Tool magazine type | ATC (Auto Tool Changer) |
| Tool magazine capacity | 40 tools |
| Tool holder | BT50 |
| Maximum tool weight | 18 kg |
| Maximum tool length | 400 (350) mm |
| Maximum tool diameter | Ø125 (Ø75) mm |
| Tool selection | Bi-direction |
| Floor space required | 4,230 × 8,500 mm |
| Machine weight | 23,000 kg |

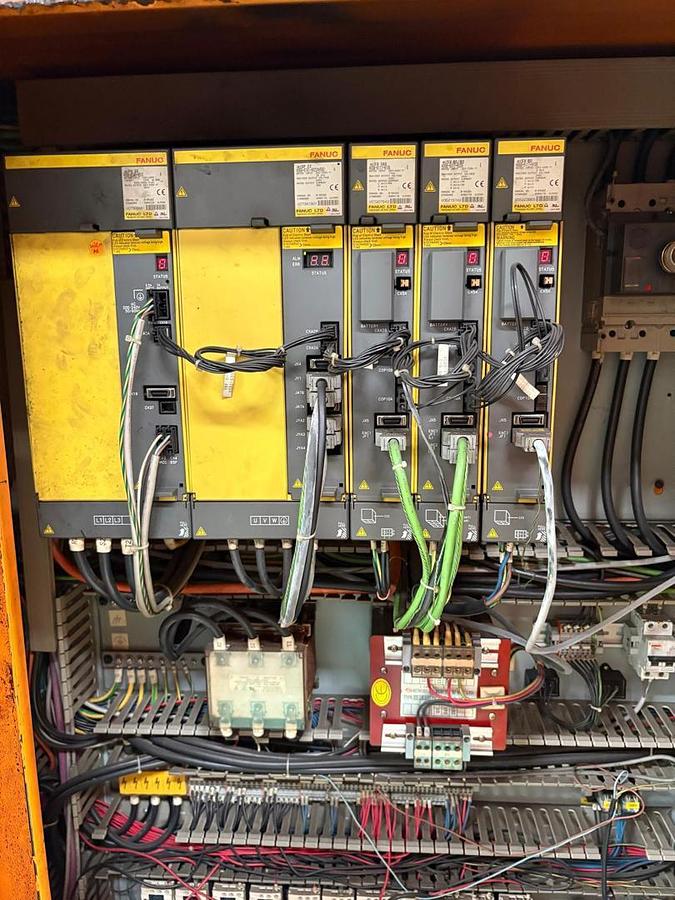

| CNC control | FANUC |
