Doosan LYNX220LB CNC Lathe Year 2012
Doosan LYNX220LB CNC Lathe Year 2012
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Doosan |
| Model | LYNX220LB |
| Year | 2012 |
| Condition | Used |
| Stock Number | 0839 |

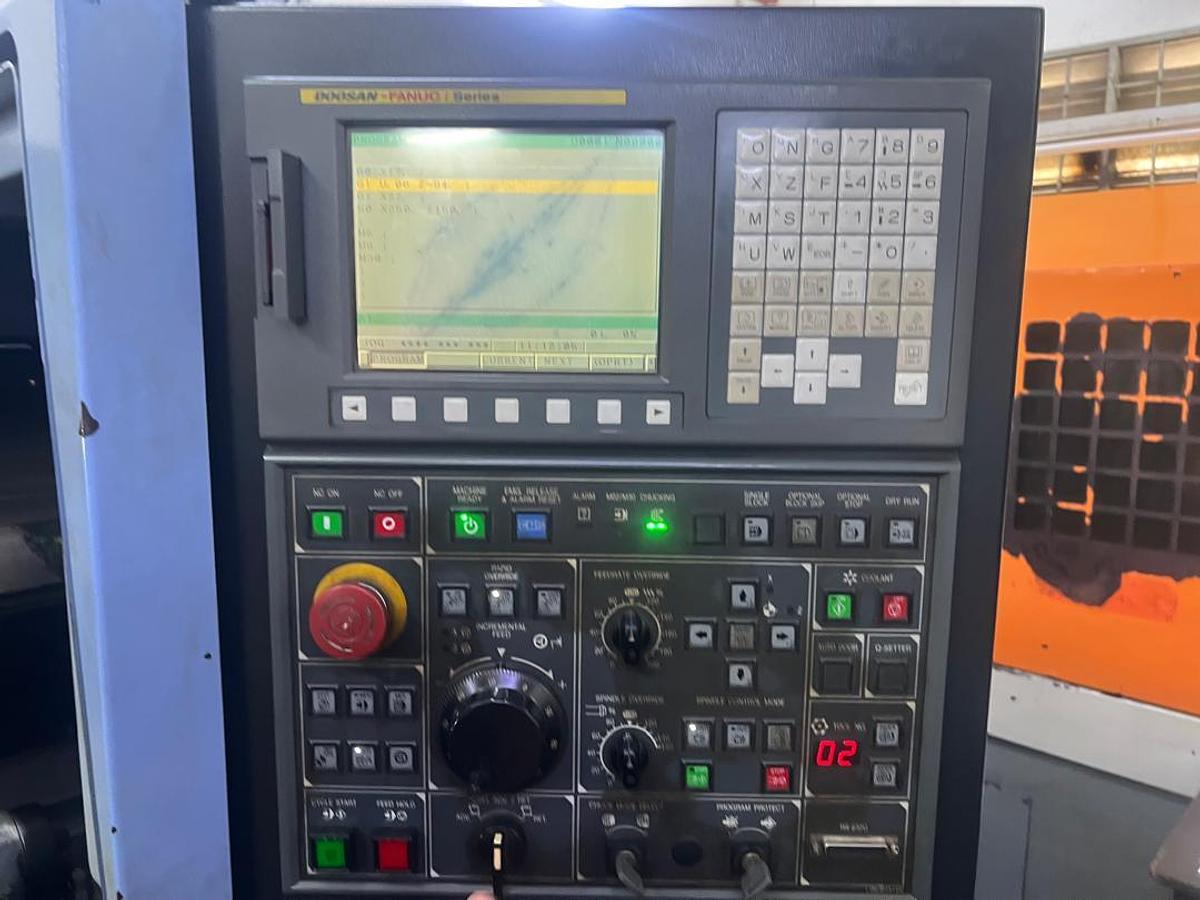

| Control | FANUC i-Series |
| Swing over carriage | 290 mm |
| Bar capacity | 51 mm |
| Maximum cutting diameter | 320 mm |
| Maximum cutting length | 305 mm |
| Swing | 510 mm |
| Tailstock quill diameter | 65 mm |
| Tailstock quill stroke | 80 mm |
| Tailstock taper | MT #4 |
| Turret positions | 12 Station |
| Rapid feedrates XZ | 30 x 36 m/minute |
| Spindle motor power | 11 kW |
| Spindle nose | A2-6 |
| Spindle speed | 5000 rpm |
| Tool size | 25 x 25 mm |
| X axis travel | 175 mm |
| Z axis travel | 330 mm |
| Machine weight | 3500 kg |
