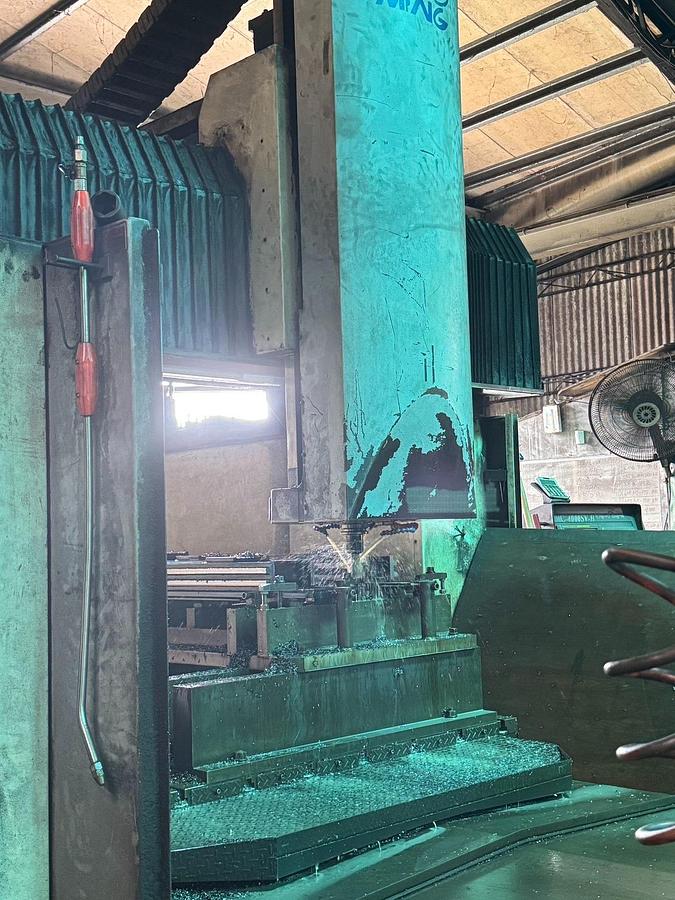

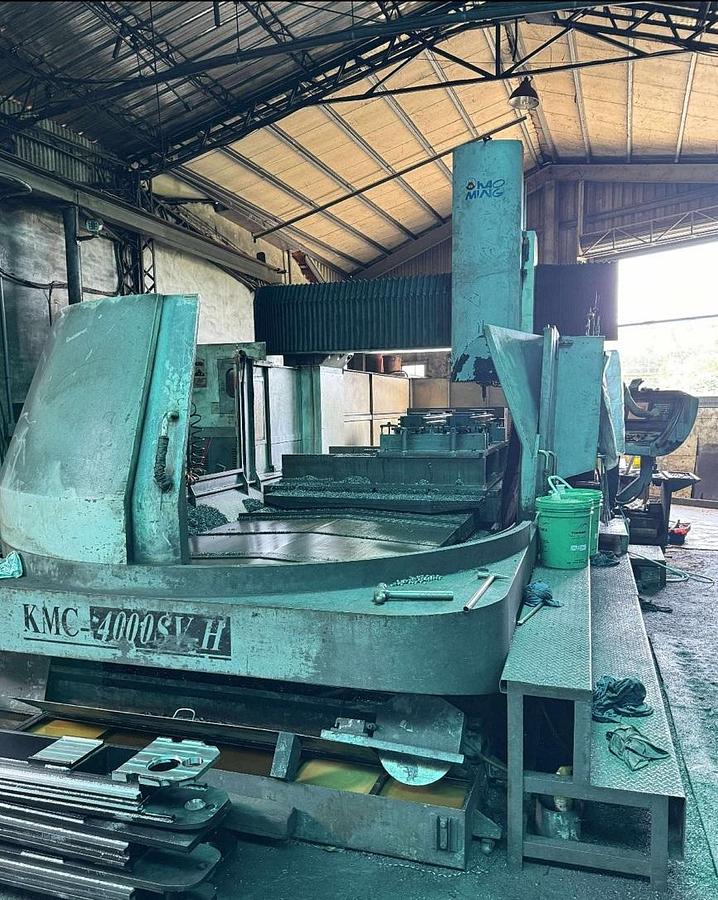

Kao Ming KMC 4000 SV-H Double Column Machining Center
Kao Ming KMC 4000 SV-H Double Column Machining Center
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Kao Ming |
| Model | KMC 4000 SV-H |
| Condition | Used |
| Stock Number | 0825 |
| X-axis travel | 4230 mm |
| Y-axis travel | 2000 mm |
| Z-axis travel | 750 mm |
| Distance between columns | 2100 mm |
| Table length | 4000 mm |
| Table width | 1600 mm |
| Table load | 11000 kg |
| Feed rate (X-axis) | 12000 mm/min |
| Feed rate (Y-axis) | 15000 mm/min |
| Feed rate (Z-axis) | 12000 mm/min |
| Spindle taper | ISO/Bt/Mk 50 |
| Spindle power | 26 kW |
| Spindle speed | 4400 rpm |
| ATC capacity | 30 tools |
| Chip conveyor | Yes |
| Coolant system | Yes |

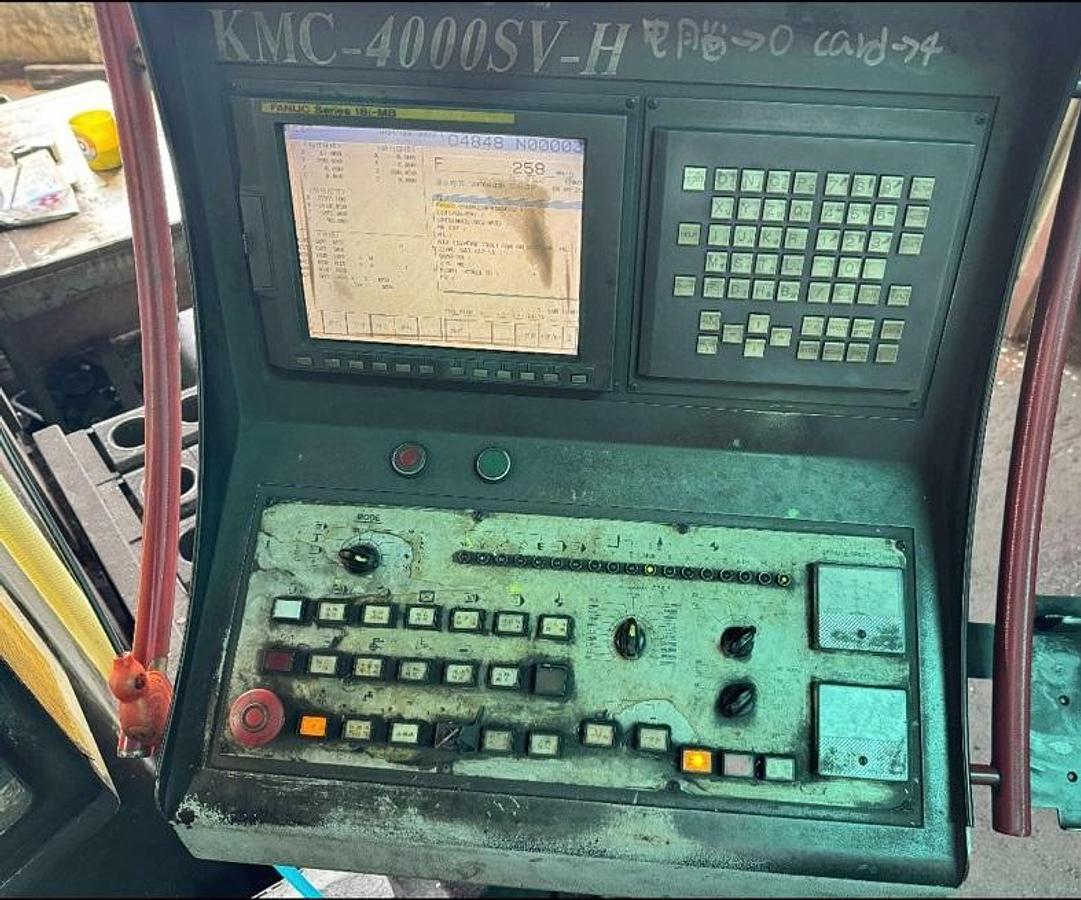

| CNC Control | Fanuc 18i-MB |
| Machine length | 10100 mm |
| Machine width | 4500 mm |
| Machine height | 4250 mm |
| Machine weight | 30000 kg |
