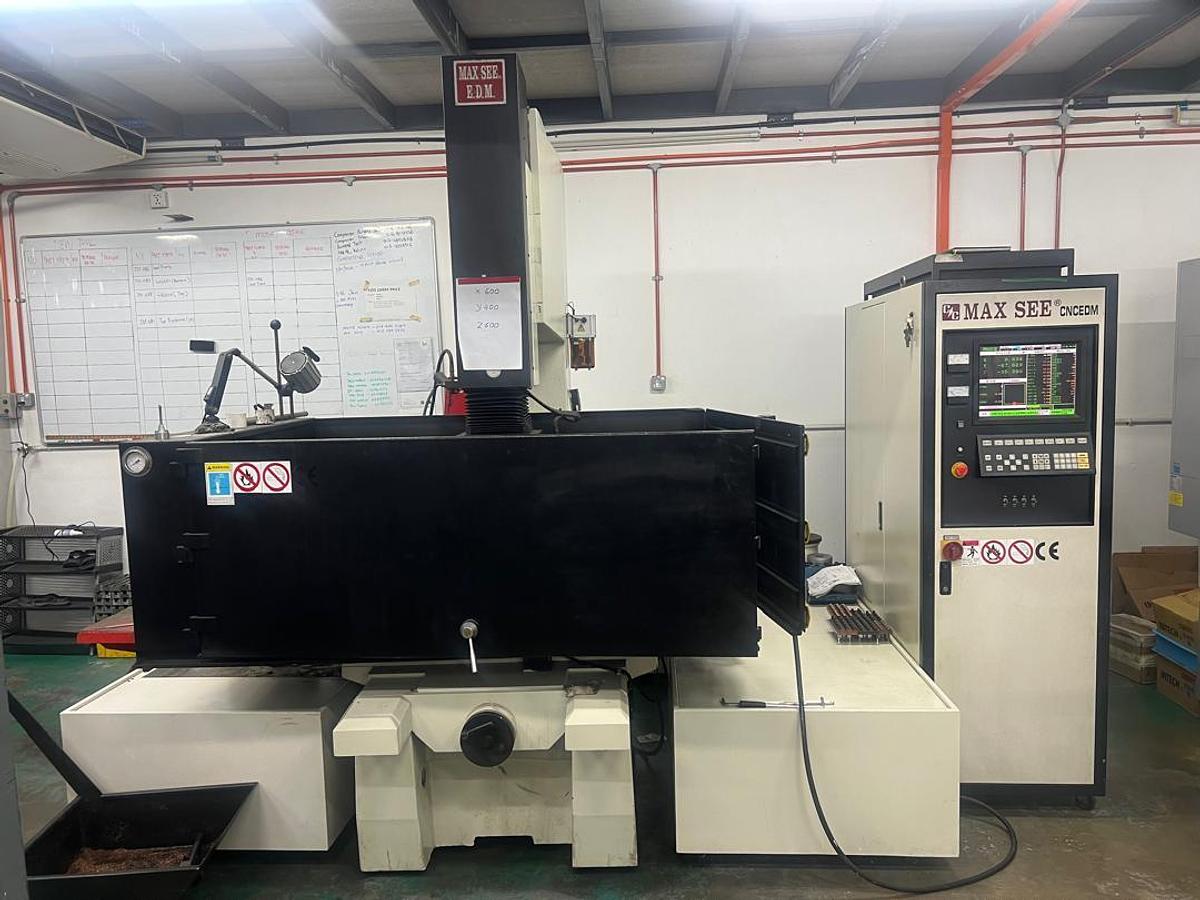

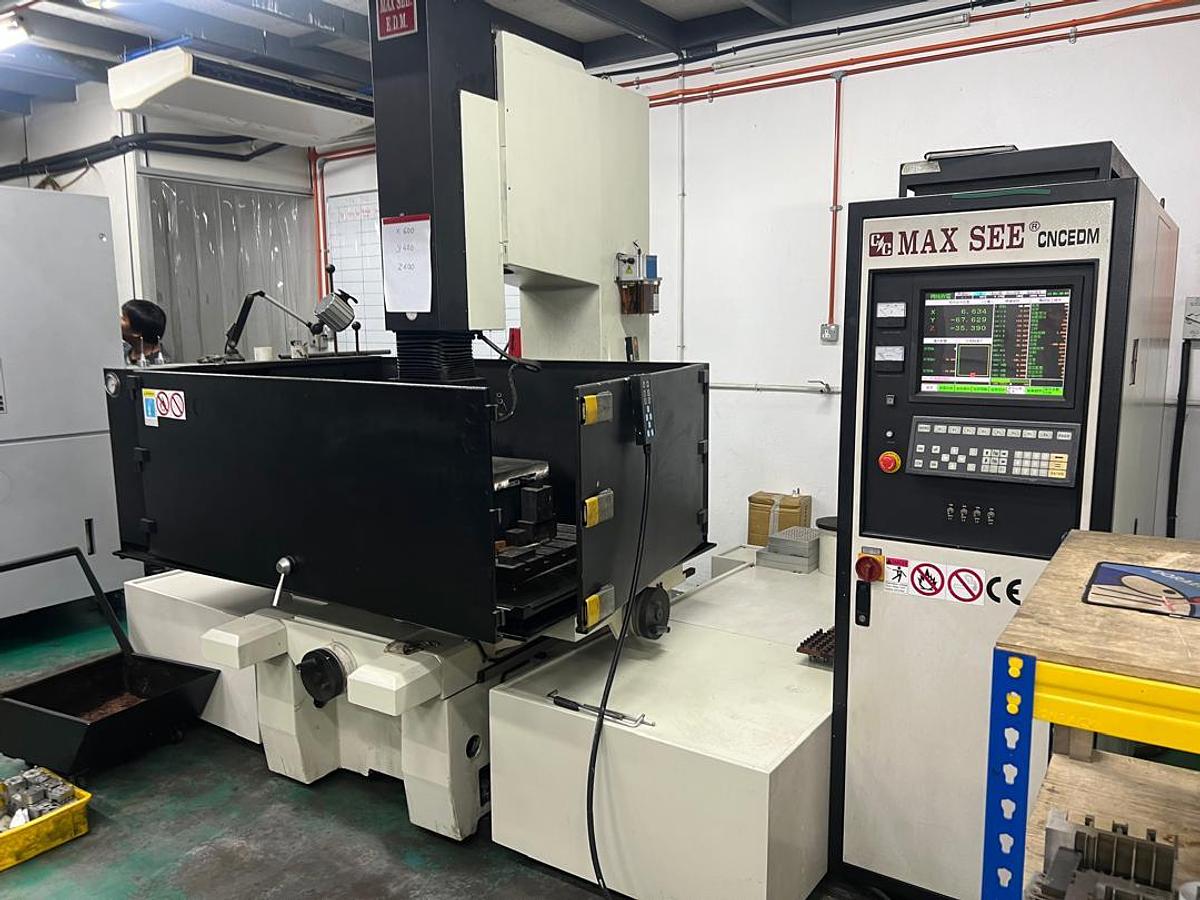

MaxSee P56 Die Sinking EDM Year 2010
MaxSee P56 Die Sinking EDM Year 2010
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | MAX SEE |
| Model | P56 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 0811 |
| X-axis travel | 580 mm |
| Y-axis travel | 470 mm |
| Z-axis travel | 250 mm |
| U-axis travel | 450 mm |
| Work table size | 1000 × 550 mm |
| Max. Workpiece Dimensions | 1600 x 1000 x 650mm |
| Max. workpiece weight | 1600 kg |
| Max. electrode weight | 300 kg |
| Dielectric unit capacity | 1200 L |
| Max. machining current | 75 A |
| Power input | 8 KVA |
| Max. dielectric level | 490 mm |
| Filter | 4 pcs |
| Machine net weight | 3200 kg |
