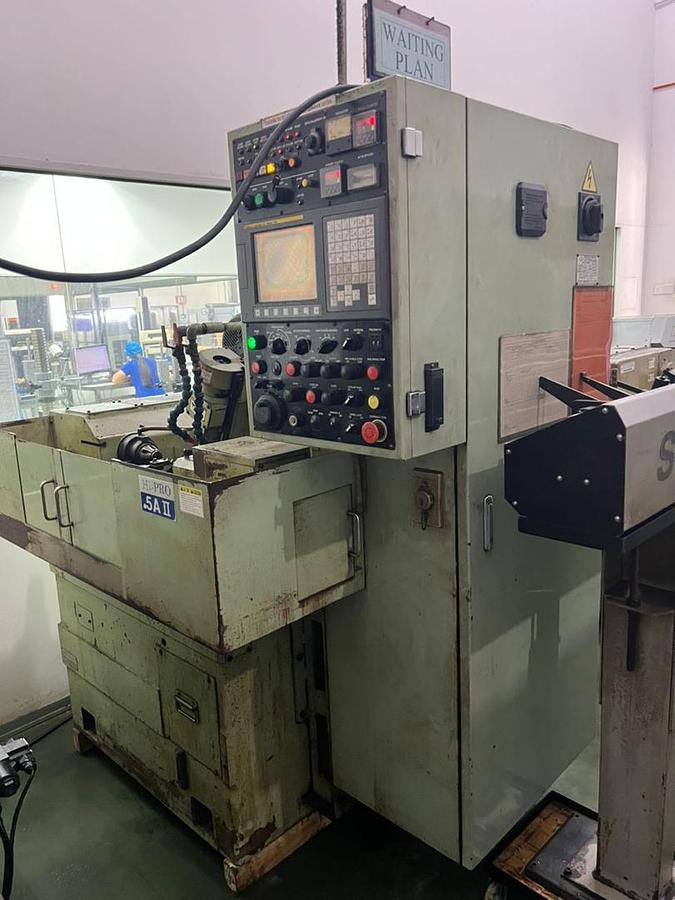

Kitai Sangyo Hi-Pro 5All Gear Hobbing Machine Year 2012
Kitai Sangyo Hi-Pro 5All Gear Hobbing Machine Year 2012
Contact us for price
Location:Malaysia
or
Call +60194711264
Specifications
| Manufacturer | Kitai Sangyo |
| Model | Hi-Pro 5All |
| Year | 2012 |
| Condition | Used |
| Stock Number | 0800 |

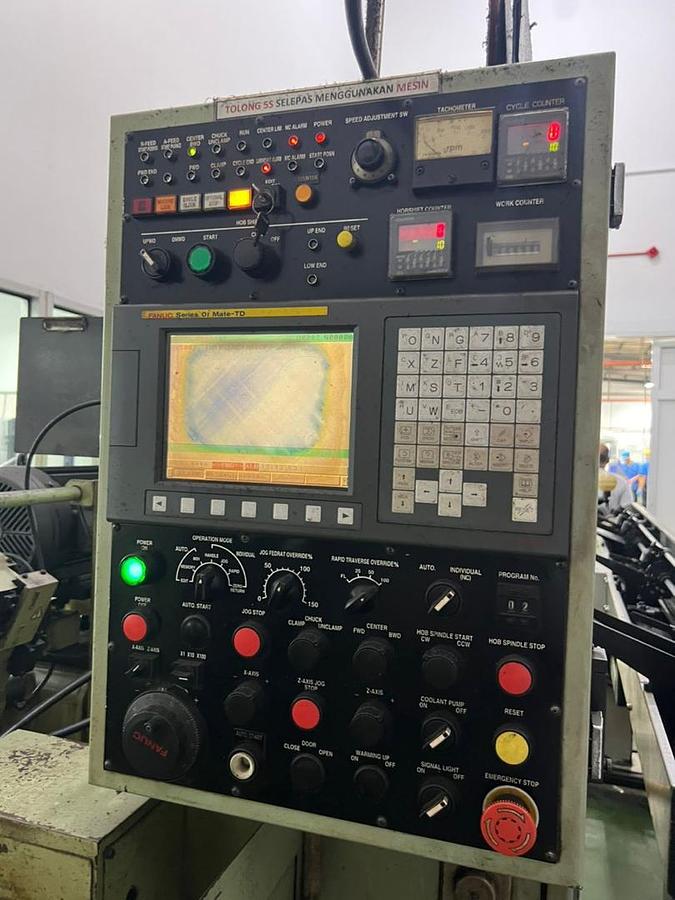

| CNC | Fanuc Oi Mate-TD |
| Max. diameter of gear | 50 mm |
| Permissible length of work | 200 mm |
| Number of teeth | 3–50 |
| Work spindle diameter | 60 mm |
| Diameter of center bore | 28 mm |
| Spindle speeds | 300–2000 min⁻¹ |
| Hob head swivel angle | -45° to +45° |
| Hob shift travel | 30 mm |
| Radial feed speed | 0.5–500 mm/min |
| Radial feed rapid traverse | 4000 mm/min |
| Axial feed speed | 0.5–500 mm/min |
| Axial feed rapid traverse | 1200 mm/min |
| Tailstock travel | 120 mm |
| Tailstock center stroke | 80 mm max |
| Tailstock spindle pressure | 36–150 kgf |
| Main motor | 2.2 kW-4P |
| Hydraulic pump motor | 0.75 kW-4P |
| Coolant pump motor | 0.18 kW-2P |
| Lubricant pump motor | 0.05 kW-4P |
| Height of machine | 1650 mm |
| Floor space | 1430 × 1386 mm |
| Net weight | 1500 kg |
