Pinnacle QV159 Vertical Machining Center Year 2017

Pinnacle QV159 Vertical Machining Center Year 2017

Contact us for price

Location:Malaysia

or
Call +60194711264

Specifications

ManufacturerPinnacle
ModelQV159
Year2017
ConditionUsed
Stock Number0686

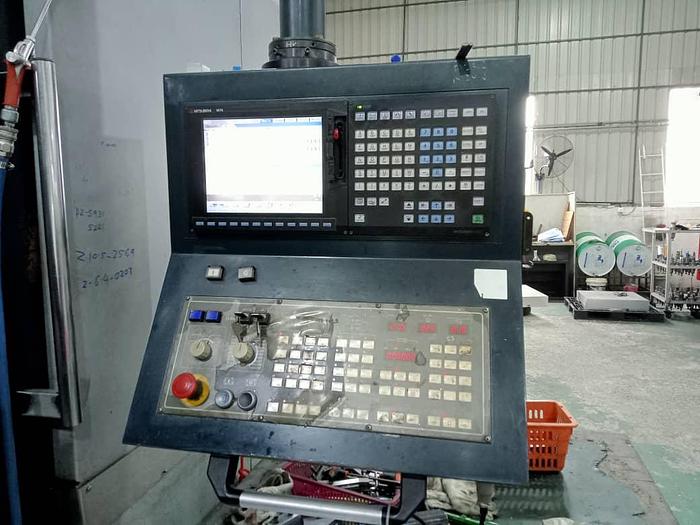

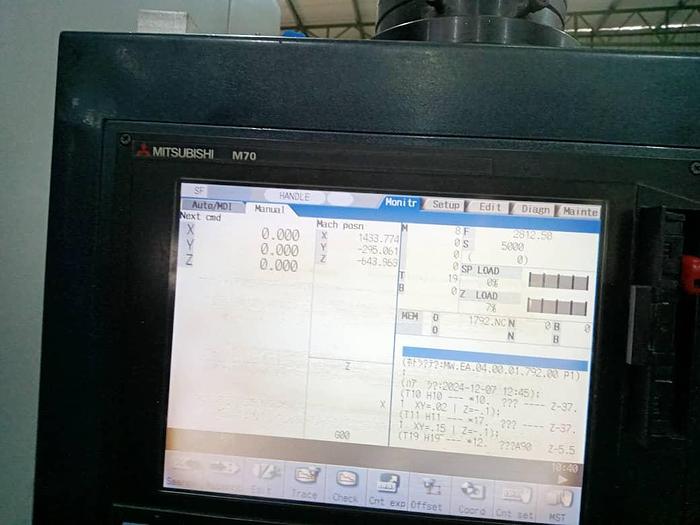

ControlMitsubishi M70
Rapid Feedrate16/16/12 m/min
Spindle Motor25/20HP
Spindle TaperISO50 (ISO40 Spindle Taper)
Slideway on Base4
X, Y & Z AxisSquare Way
Electrical Capacity40 kVA
Machine Weight14,000 kg
X Axis Travel1,500 mm
Y Axis Travel900 mm
Z Axis Travel850 mm
Spindle NoseBT-50
Spindle Inner Diameter100 mm
Spindle Center to Column950 mm
Spindle Speed12,000 RPM
Spindle TypeEnclosed
Draw Bar Force2,000 kg
Main Motor11 / 15 kW
Tool Storage Capacity24 / 32 Tools
Maximum Tool Diameter105 / 127 mm
Maximum Tool Length350 mm
Maximum Tool Weight15 kg
Air Supply6 bar
Required Voltage220 V
Power Requirement40 kVA
Coolant Tank Capacity700 L
Machine Height3,200 mm
