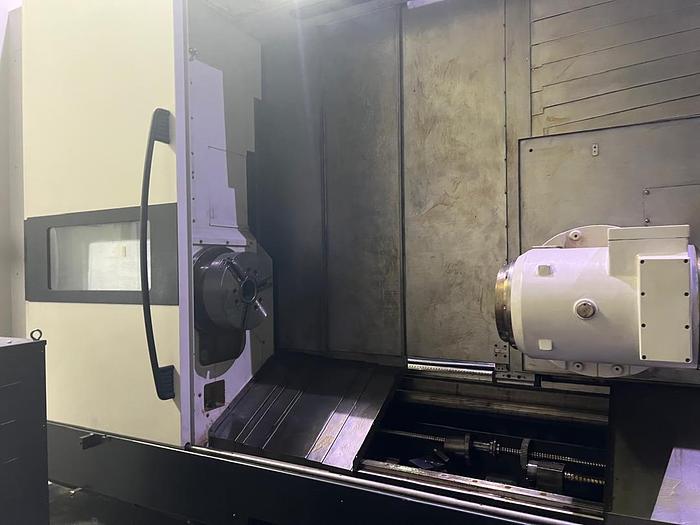

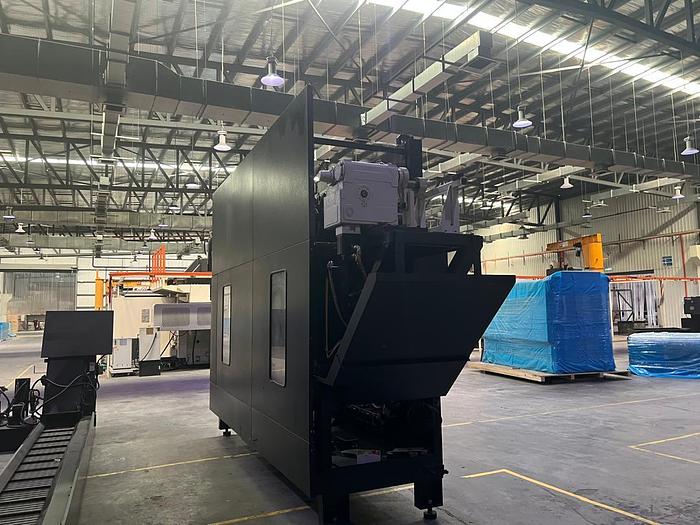

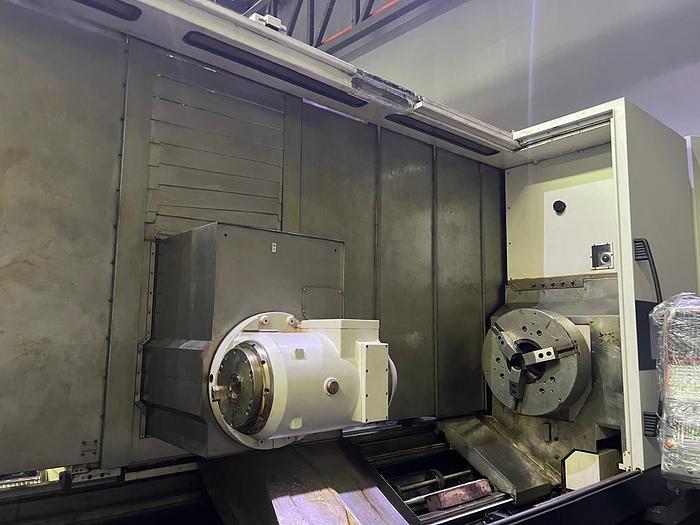

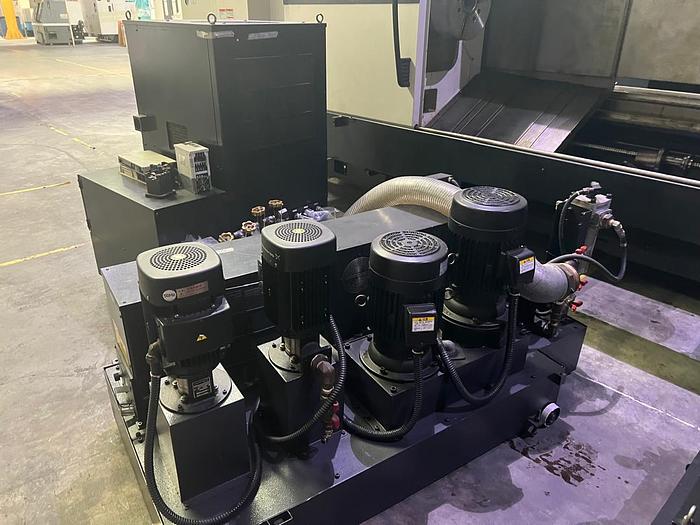

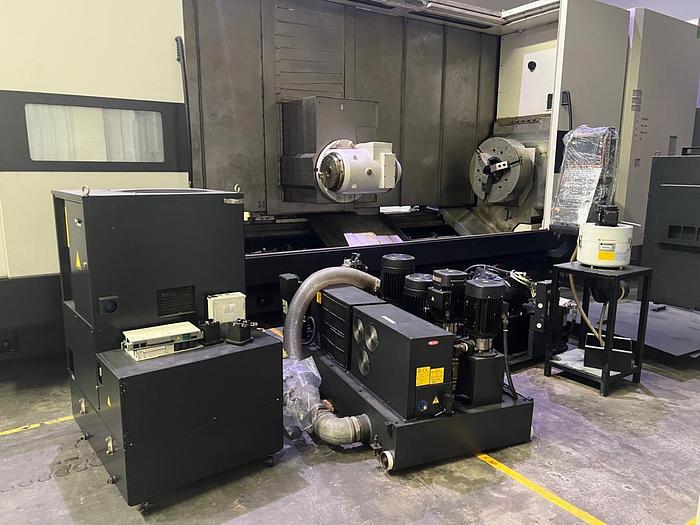

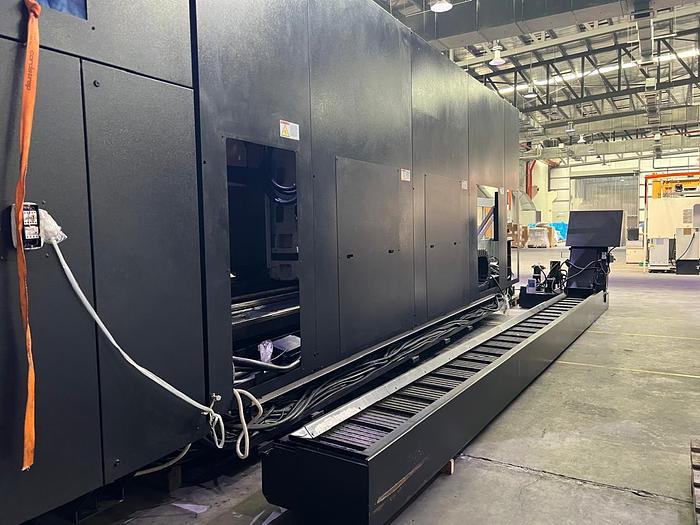

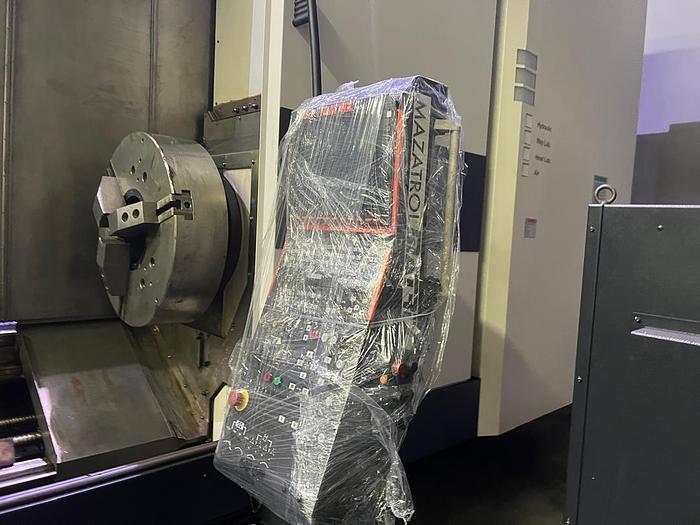

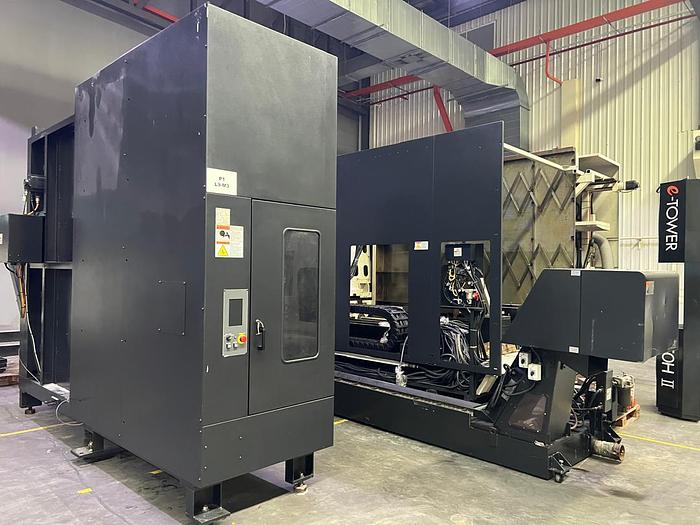

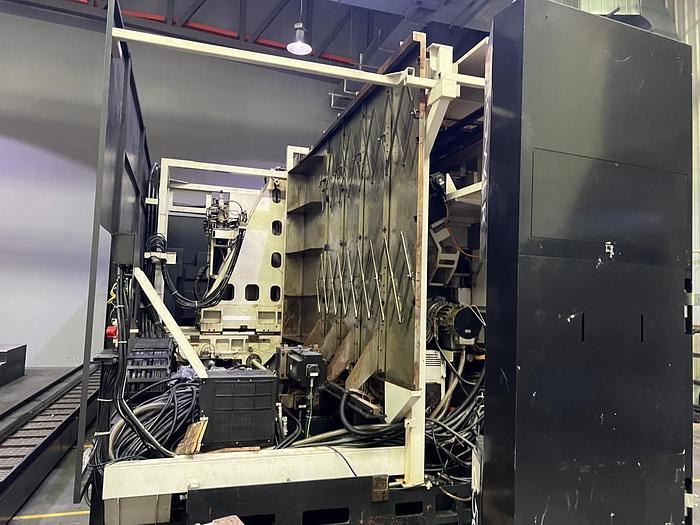

MAZAK INTE-e650HSII Year 2007 CNC Turning & Milling Center

SPECIFICATIONS:

MAXIMUM SWING : 813 MM

CENTER DISTANCE : 3048 MM

X-AXIS TRAVEL : 1025 MM

Z-AXIS TRAVEL : 3122 MM

Y-AXIS TRAVEL : +650 MM /-325 MM

B-AXIS INDEX : 0 MM

C-AXIS INDEX : 0 MM

MAIN SPINDLE:

MAIN SPINDLE SPEED : 35-1600 RPM

MAIN MOTOR : 45 KW

SPINDLE NOSE : A2-15

BAR CAPACITY : 168 MM

B-AXIS MILLING SPINDLE:

HEAD TILT : -30/+210 DEGREES

SPINDLE TAPER : CAT 50 BIG PLUS

LIVE TOOL SPEED : 10,000 RPM

SPINDLE MOTO : R37 KW

DIMENSIONS & WEIGHTS:

DIMENSIONS : 9931 MM X 3937 MM X 3937 MM

WEIGHT : 35380 KG .
